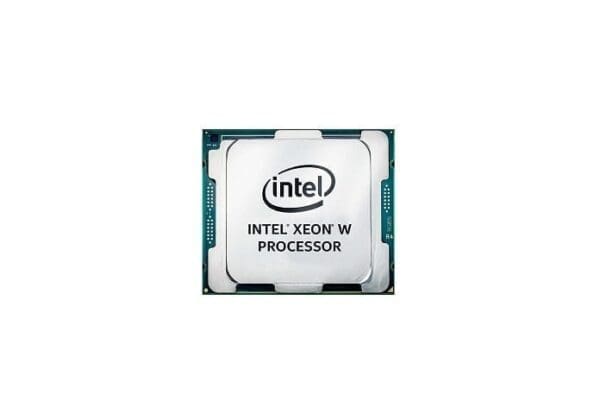

CM8068403380219 Intel Xeon E-2126G 6-Core 3.30GHz 8.00GT/s

CM8068403380219 Intel Xeon E-2126G 6-Core 3.30GHz 8.00GT/s DMI3 12MB L3 Cache Socket FCLGA1151 Server Processor

CM8068403380219 Intel Xeon E-2126G 6-Core 3.30GHz 8.00GT/s

Brand Intel

Part No. CM8068403380219

Processor Type Server

Series Xeon Processor

Core Model Type/ProcNo. E-2126G

Processor Code Name Coffee Lake

Manufacturing Technology 14 nm

# of Cores 6

# of Threads 6

Clock Speed 3.30 GHz

Max Turbo Frequency 4.50 GHz

L3 Cache Size 12 MB

Front Side Bus / QuickPath Interconnect 8.00 GT/s

Intel Turbo Boost Max Technology 3.0 Frequency 4.50 GHz

Thermal Power 80 Watts

Max Memory Size 128 GB

Memory Types DDR4-2666

Memory Channels 2

Maximum Memory Bandwidth 41.6 GB/s

ECC Memory Supported Yes

CPU Socket Type LGA 1151

Max CPU Configuration 1

TJUNCTION 100 °C

Package Size 37.5mm x 37.5mm

Processor Graphics Intel UHD Graphics P630

Graphics Base Frequency 350 MHz

Graphics Max Dynamic Frequency 1.15 GHz

Graphics Video Max Memory 128 GB

Graphics Output eDP/DP/HDMI/DVI

4K Support Yes, at 60Hz

Max Resolution (HDMI 1.4) 4096 x 2160 @ 24Hz

Max Resolution (DP) 4096 x 2304 @ 60Hz

Max Resolution (eDP – Integrated Flat Panel) 4096 x 2304 @ 60Hz

DirectX Support 12

OpenGL Support 4.5

Intel Quick Sync Video Yes

Intel InTru 3D Technology Yes

Intel Clear Video HD Technology Yes

Intel Clear Video Technology Yes

# of Displays Supported 3

Device ID 0x3E96

Embedded Options Available No
