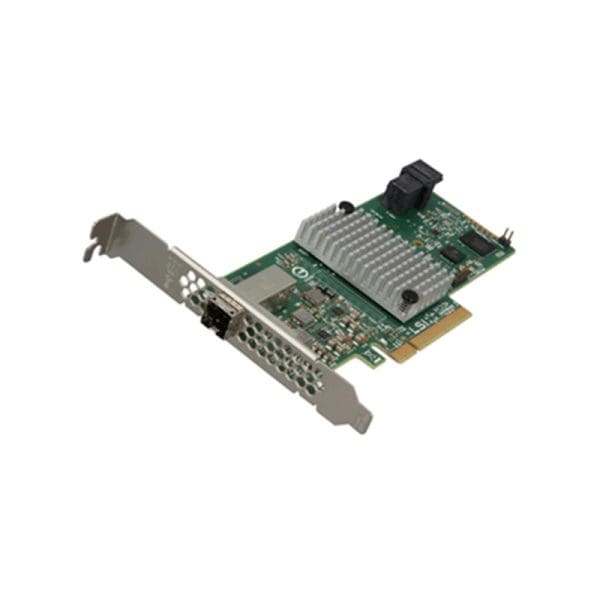

D6D3T Dell 9300-4i4e Single SAS 4 Port 12Gb/s PCI-Express 3.0 x8 SAS Host Bus Adapter

D6D3T Dell 9300-4i4e Single SAS 4 Port 12Gb/s PCI-Express 3.0 x8 SAS Host Bus Adapter

$260.00

The Dell D6D3T 9300-4i4e PCI-E 3.0 X8 Single SAS 4 Port 12GBPS Host Bus Adapter is a piece of hardware that is used to connect storage devices, such as hard drives or solid-state drives, to a computer system. In this article, we will explain in detail the features, specifications, and benefits of this host bus adapter.

D6D3T Dell 9300-4i4e Single SAS 4 Port 12Gb/s PCI-Express 3.0 x8 SAS Host Bus Adapter
$260.00
Contact Us

Manufacturer: Dell

Part Number or SKU# D6D3T

Device Type: Host Bus Adapter

Technical Information of Dell 12 GBPS Host Bus Adapter

Host Bus Type: X8 Lane PCI-E 3.0

Devices Supported: 1024 Non-RAID SAS/SATA Devices

Internal Ports: 4

Operating Temperature: 0°c To 55°c

Operating Voltage: +12v +/-8%, 3.3v +/-9%

External Connectors: 1 Mini-SAS HD Sff8644

Fusion Mpt Support: Fusion MPT 2.5

Internal Connectors: 1 Mini-SAS HD Sff8643

PCI Power: 14.2w

Cable Support: passive Copper, Active Optical (external Only)

I/o Controllerlsi SAS3008

Mtbf > 2,800,000 Hours

Operating Humidity: 5% To 90% Non-condensing

Data Transfer Rates: 12GBPS SAS-3 Compliant

Physical Dimensions: Low Profile (2.6 inch X 6.0 inch)

SKU: D6D3T Category: Tag:
