Brand: Intel

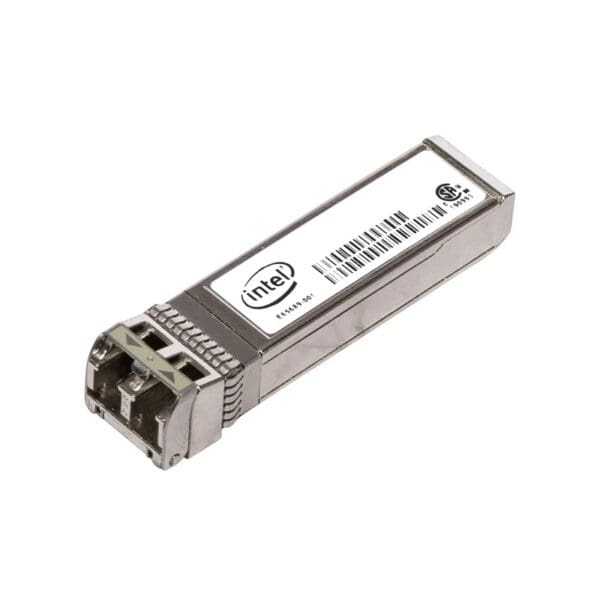

Type: Transceiver Module
Technical Description
Network Standards Physical Layer Interface: 1000BASE-SX 1G Ethernet, 10GBASE-SR 10G Ethernet
Electrical Interface: SFF-8431 Rev. 4.1
I2C Register Interface: SFF-8472 Rev. 1.02
Mechanical: SFF-8432 Rev. 5.0
RoHS Compliant: Yes
Electrical Outlet Plug Type: Plug Type “A” (USA, Canada, Mexico, Japan)
Hot-pluggable SFP+ footprint
Supports rate selectable 1.25Gb/s or 9.95 to 10.3Gb/s bit rates
Power dissipation < 1W Commercial temperature range 0°C to 70°C Single 3.3 VDC power supply Max link length 300m on 2000MHz-km MMF Ucooled 850nm VCSEL laser Receiver limiting electrical interface Duplex LC connector Built-in digital diagnostic functions Product Type: Transceiver Module
