Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX Series

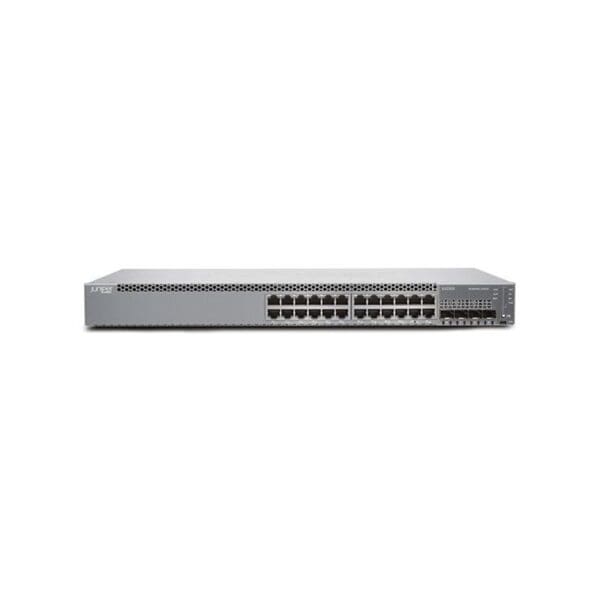

Model :EX2300-24P
Packaged Quantity :1
Processor
Installed Qty :1
Manufacturer :ARM
Clock Speed :1.25 GHZ
RAM
Installed Size :2 GB
Flash Memory
Installed Size :2 GB, 2 GB
Performance
Performance :Switching capacity: 128 Gbps, Throughput: 95 Mpps
Capacity
Capacity :Virtual interfaces (VLANs): 4096, Multiple Spanning Tree Protocol instances: 64, IPv4 hosts: 4096, QoS hardware queues per port: 8, Active VLANs: 2048, IPv6 hosts: 2048, IPv6 routes (Multicast): 1024, ARP entries: 1024, IPv6 routes (Unicast): 128, VLAN Spanning Tree Protocol instances: 253, LAG groups: 128, IPv4 routes (Multicast): 2048, Maximum member ports per LAG: 8, Maximum of neighboring networks: 750, ACL entries: 1500, IPv4 routes (Unicast): 512
