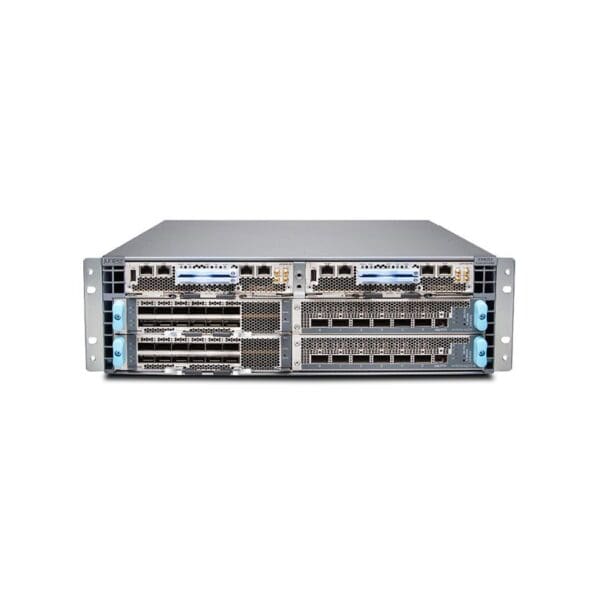

Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX Series
Model :9253
Edition :Bundle
Bundled with :Juniper Networks EX9253-6Q12C Line Card
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Built-in Devices :2 x 100 GB SSD
Installed Devices / Modules Qty :0
Supported Devices / Modules Qty :3
Processor
Type :Xeon
Installed Qty :1
Manufacturer :Intel
Clock Speed :1.6 GHZ
RAM
Installed Size :64 GB
Performance
Performance :Bandwidth per slot: 2.4 Tbps, Maximum throughput: 4.8 Tbps, Bandwidth (full duplex): 1.2 Tbps
Capacity
Capacity :QoS hardware queues per port: 8, Virtual interfaces (VLANs): 32000, FIB entries: 512000, ARP entries: 512000, Multicast entries (IPv4): 256000, Policies: 16000, Multicast entries (IPv6): 256000
