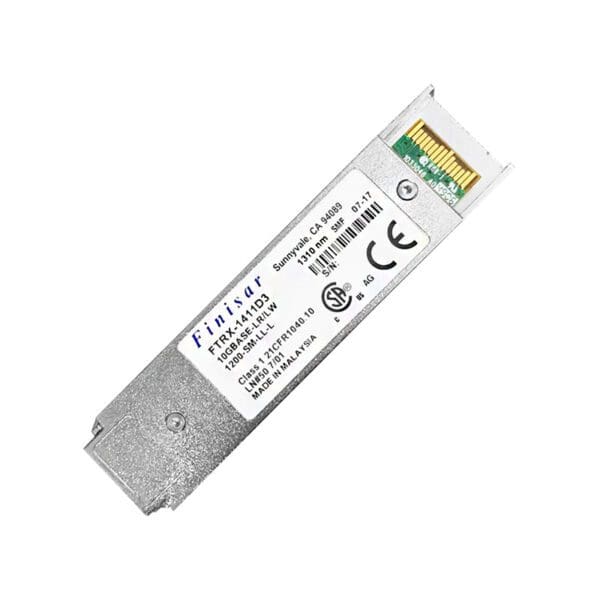

10Gb/s 10km Datacom XFP Optical Transceiver. They comply with 10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. The high performance uncooled 1310nm DFB transmitter and high sensitivity PIN receiver provide superior performance for SONET /SDH and Ethernet applications at up to 10km links. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.
Supports 9.95Gb/s to 10.5Gb/s bit rates
Hot-pluggable XFP footprint
Maximum link length of 10km
Uncooled 1310nm DFB laser.
Duplex LC connector
Power dissipation <2.5W No Reference Clock required Built-in digital diagnostic functions Temperature range -5°C to 70°C Average Output Power:-6~0dBm Receiver Sensitivity:-14.5dBm
