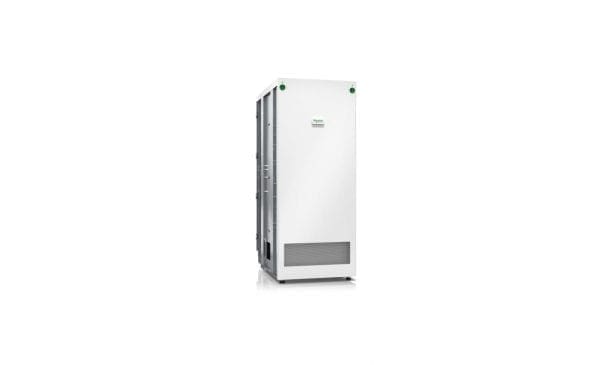

GVSBPIT50 Galaxy VS Maintenance Bypass Cabinet

$14,890.00

Galaxy VS Maintenance Bypass Cabinet with Input Transformer 30-50kW 480V or 600V In, 208V Out

Maintenance bypass cabinet with transformer. The maintenance bypass isolates the UPS completely during service operations. The input transformer can be configured onsite for either 480V or 600V input and delivers 208V output. Compatible with 208V UPS.

GVSBPIT50 Galaxy VS Maintenance Bypass Cabinet
$14,890.00

Physical

Maximum Height

58.46inches (1485MM, 148.5CM)

Maximum Width

23.62inches (600MM, 60.0CM)

Maximum Depth

32.91inches (836MM, 83.6CM)

Net Weight

1168.45lbs. (530.0KG)

Shipping weight

1234.59lbs. (560.0KG)

Shipping Height

65.75inches (1670MM, 167.0CM)

Shipping Width

31.5inches (800MM, 80.0CM)

Shipping Depth

38.98inches (990MM, 99.0CM)

Color

White

Environmental

Operating Temperature

32 – 104 °F (0 – 40 °C)

Operating Relative Humidity

0 – 95 (non-condensing) %

Storage Temperature

-25 to 55 °C

Storage Relative Humidity

0 – 95 (non-condensing) %
