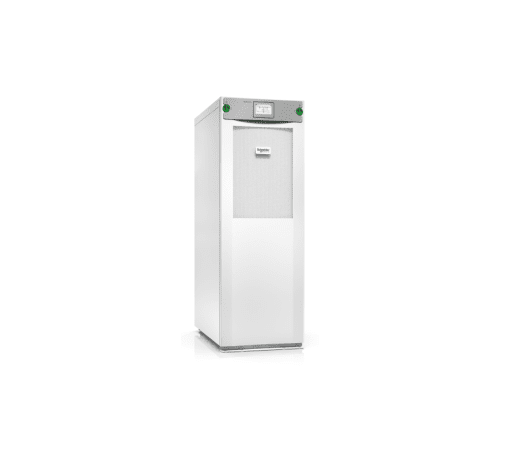

GVSUPS40KFS Galaxy VS UPS 40kW 208V for External Batteries

GVSUPS40KFS Galaxy VS UPS 40kW 208V for External Batteries

$23,719.00

Highly efficient, easy-to-deploy 40kW, 208V 3-phase uninterruptible power supply (UPS) that brings best-in-class power protection to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Compact design, high-density technology and modular architecture keep total cost of ownership low and operational efficiency at the highest levels. Galaxy VS reduces your energy losses by up to 66% with the patented ECOnversion mode – reaching up to 99% efficiency levels and delivering more energy savings than even our industry-leading 97% efficiency in normal operating mode. The UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management via your smartphone. Includes 5×8 start-up service. For battery runtime details, see the runtime charts published under the Documents tab.

GVSUPS40KFS Galaxy VS UPS 40kW 208V for External Batteries
$23,719.00
Contact Us

Output

Max Configurable Power (Watts)

40.0kWatts / 40.0kVA

Output Voltage Distortion

Less than 3%

Output Frequency (sync to mains)

50 Hz, 60 Hz

Output Frequency (not synced)

60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal

Other Output Voltages

200, 220

Load Crest Factor

2.5

Topology

Double Conversion Online

Waveform type

Sine wave

Overload Operation

150% for 1 minute 125% for 10 minutes

Output Voltage THD

<1% linear load and <3% non-linear load Output Voltage Tolerance +/-1% after 50ms Bypass Built-in Static Bypass Input Input frequency 40 – 70 Hz Input voltage range for main operations 177 – 239 (208V)V Input Total Harmonic Distortion Less than 3% for full load Other Input Voltages 200, 220 Maximum Short Circuit Withstand (Icw) 65.0kAmps Input Power Factor at Full Load 0.99 Batteries & Runtime Battery type No internal battery – uses external battery system Nominal Battery Voltage 384-480VDC End of Discharge Maximum Battery Current 136.0A End of Discharge Battery Voltage 307 VDC Efficiency View Efficiency Graph Communications & Management Interface Port(s) GVS_Cable2ndBatCab, GVS_MBCKIT_UL, GVS_NarrowCBC_Seismic, GVS_NarrowSeismicKit, GVS_Parallel, GVS_WideCBC_Seismic, GVS_WideUPS_AirFilter, GVS_WideUPSMBC_SeismicKit, GVS_XFMRSeismicKit Control panel Touch Screen LCD User Interface Audible Alarm Audible and visible alarms prioritized by severity Available SmartSlot™ Interface Quantity 1 Physical Maximum Height 58.46inches (1485MM, 148.5CM) Maximum Width 20.51inches (521MM, 52.1CM) Maximum Depth 33.35inches (847MM, 84.7CM) Net WeightGVSUPS40KFS Galaxy VS UPS 40kW 208V for External Batteries 551.16lbs. (250.0KG) Shipping weight 606.27lbs. (275.0KG) Shipping Height 66.14inches (1680MM, 168.0CM) Shipping Width 25.2inches (640MM, 64.0CM) Shipping Depth 38.98inches (990MM, 99.0CM) Color Gloss level 85%, RAL 9003 Environmental Operating Temperature 32 – 104 °F (0 – 40 °C) Operating Relative Humidity 0 – 95 (non-condensing) % Operating Elevation 0-3281ft (0-984.3meters) Storage Temperature -25 to 55 °C Storage Relative Humidity 10 – 80 (non-condensing) % Storage Elevation 0-50000ft (0-15000meters) Audible noise at 1 meter from surface of unit 65.0dBA Online thermal dissipation 7755.7BTU/hr Protection Class IP 21 Conformance Approvals CSA C22.2 NO. 107.3, FCC Part 15 Class A, IEC 62040-3, IEC 60721-4-2 Level 2M2, UL 1778 5th edition Sustainable Offer Status RoHS Compliant REACH REACH: Contains SVHCs

SKU: GVSUPS40KFS Category: Tag:
