Bay Provided
Form Factor :2.5″
Free Qty :0
Total Qty :2 Bays
Form Factor :2.5″ SFF
Free Qty :9
Total Qty :24
Cache Memory
Installed Size :60 MB
Installed Size :60
Per Processor Size :30 MB
Per Processor Size :30
Chassis
Form Factor :Rack-mountable
Hot-Swap Bays Qty :24
Manufacturer Form Factor :Rack-mountable
Server Storage Bays : Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SAS
Cluster
RAID Level :JBOD
Dimensions & Weight
Depth :29.1 in
Height :3.4 in
Width :17.6 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :41 °F
Expansion Bays
Form Factor (metric) :6.4 cm
Type :Internal
Form Factor (metric) :6.4 cm SFF
Type :Hot-swap
Expansion Slots
Size :Full-length, full-height
Type :PCIe x16
Size :Three-quarter-length, full-height
Type :PCIe x8
Type :CPU
Type :DIMM 288-pin
Type :PCIe
Type :SD card (internal)
Hard Drive
Installed Qty :1
Interface Class :Serial SATA
Type :SSD
Hard Drive (2nd)
Capacity :120 GB
Features :Boot drive
Installed Qty :1
Interface Class :Serial ATA
Interface Type :Serial ATA-600
Type :SSD
Hard Drive (3rd)
Capacity :1.2 TB
Installed Qty :15
Interface Type :Serial Attached SCSI 3
Spindle Speed :10000 rpm
Type :HDD
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing

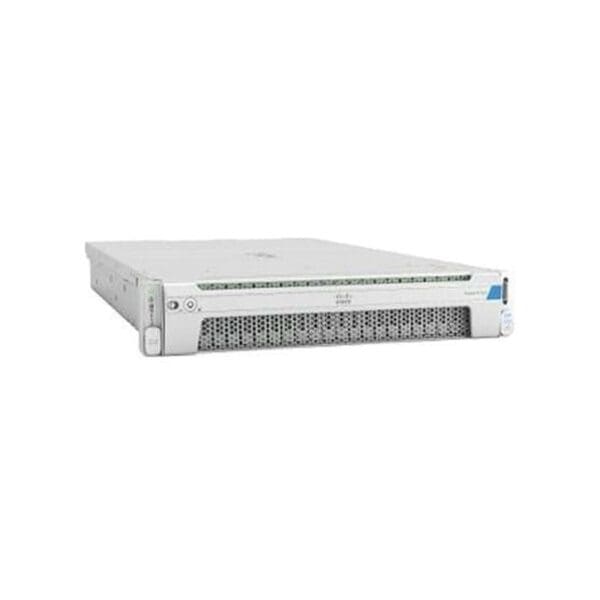

Model :Smart Play Select HX240c Hyperflex System
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Connector Type :RJ-45
Type :Serial
Connector Type :SFP+
Type :LAN (10 Gigabit Ethernet)
Location :1 in front
Type :KVM
Qty :1
Type :VGA
Qty :2
Type :LAN (Gigabit Ethernet)
Type :Management
Type :SATA-600
Type :USB 3.0
Miscellaneous
Color Category :Silver
Compliant Standards :AS/NZS 60950-1, AS/NZS CISPR 22, CAN/CSA C22.2 No. 60950-1 Second Edition, CISPR 22 Class A, CISPR 24, CNS13438:2006, EN 300386, EN 60950-1 Second Edition, EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 A, GB4943.1-2001, ICES-003 Class A, IEC 60950-1 Second Edition, KN22, KN24, UL 60950-1 Second Edition, VCCI Class A
Height (Rack Units) :2U Rack Mount
Included Accessories :2 x 64 GB SD Memory Card, 2 x CPU Heatsink, 8x 2.5 inch HDD blanking panel, Bezel, Cisco Ball Bearing Rail Kit, CPU asset tab ID label
Networking
Data Link Protocol :10 Gigabit Ethernet, Gigabit Ethernet
Ethernet Controller(s) :Cisco UCS Virtual Interface Card 1227, Intel I350
Ethernet Ports :2 x Gigabit Ethernet, 2 x SFP+
Features :PXE support
Remote Management Controller :Cisco Integrated Management Controller
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Power Device
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :AC 200/240 V
Power Provided :1400 Watt
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Type :Power supply – hot-plug
Printer
Type :None
Processor
Clock Speed :2.2 GHz
Installed Qty :2
Manufacturer :Intel
Max Supported Qty :2
Max Turbo Speed :2.9 GHz
Number of Cores :12-core
Processor Number :E5-2650V4
Server Scalability :2-way
Type :Xeon
Upgradability :Upgradable
RAM
Configuration Features :24 x 16 GB
Empty Slots :0
Form Factor :DIMM 288-pin
Installed Size :384 GB
Installed Size :384
Memory Specification Compliance :PC4-19200
Memory Speed :2400 MHz
Rated Memory Speed :2400 MHz
Slots Qty :24 DDR4 Slots
Technology :DDR4 SDRAM
