Bay Provided
Form Factor :2.5″ SFF
Free Qty :12
Total Qty :24 Bays
Cabinet
Chassis Built-in Devices :Backplane
Cache Memory
Installed Size :60 MB
Installed Size :60
Per Processor Size :30 MB
Per Processor Size :30
Card Reader
Supported Flash Memory Cards :SD Memory Card
Chassis
Form Factor :Rack mounting Kit
Hot-Swap Bays Qty :12
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SATA/SAS
Dimensions & Weight
Depth :29.1 in
Height :3.4 in
Width :17.6 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :41 °F
Expansion Bays
Form Factor (metric) :6.4 cm SFF
Type :Hot-swap
Expansion Slots
Type :CPU
Type :DIMM 288-pin
Type :SD card
Hard Drive
Installed Qty :1
Interface Class :Serial ATA
Type :SSD
Hard Drive (2nd)
Capacity :120 GB
Features :Boot drive
Installed Qty :1
Interface Class :Serial ATA
Interface Type :Serial ATA-600
Type :SSD
Hard Drive (3rd)
Capacity :1.2 TB
Installed Qty :12
Interface Type :Serial Attached SCSI 3
Removable :Hot-swap
Spindle Speed :10000 rpm
Type :HDD
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing

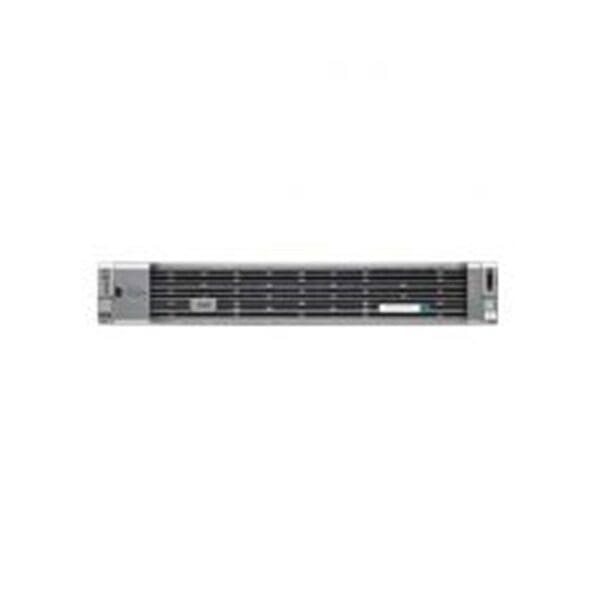

Model :Smart Play Select HX240c Hyperflex System
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Connector Type :RJ-45
Qty :1
Type :Serial
Qty :2
Type :USB 3.0
Type :KVM
Type :LAN (10 Gigabit Ethernet) (SFP+)
Type :Management
Type :Management (NIC)
Type :VGA
Mainboard
Processor Socket :LGA2011-v3 Socket
Miscellaneous
Color Category :Silver
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, Directive 2004/108/EC, Directive 2006/95/EC, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, GB4943.1-2001, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, UL 60950-1, UL 60950-1 Second Edition
Height (Rack Units) :2U Rack Mount
Included Accessories :12 x HDD blanking panel, 2 x 64 GB SD Memory Card, 2 x CPU Heatsink, Bezel, Cisco Ball Bearing Rail Kit, SAS expander
Networking
Data Link Protocol :10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(s) :Cisco UCS Virtual Interface Card 1227, Intel I350
Ethernet Ports :2 x Gigabit Ethernet, 2 x SFP+
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Power Device
Installed Qty :2
Max Supported Qty :2
Power Provided :1200 Watt
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Type :Power supply – hot plug
Printer
Type :None
Processor
Clock Speed :2.6 GHz
Installed Qty :2
Manufacturer :Intel
Max Supported Qty :2
Max Turbo Speed :3.5 GHz
Number of Cores :12 core
Processor Number :E5-2690V3
Server Scalability :2-way
Type :Xeon
Upgradability :Upgradable
RAM
Configuration Features :16 x 32 GB
Data Integrity Check :ECC
Empty Slots :8
Features :Dual rank, Load-Reduced DIMM (LRDIMM), Memory Mirroring
Form Factor :DIMM 288-pin
Installed Size :512 GB
Installed Size :512
Max Supported Size :768 GB
Max Supported Size :768
Memory Speed :2133 MHz
Slots Qty :24 DDR4 Slots
Technology :DDR4 SDRAM
