Bay Provided
Form Factor :2.5″ SFF
Free Qty :26
Total Qty :26
Chassis
Form Factor :Rack-mountable
Front Accessible Bays Qty :24
Hot Swap Bays Qty :26 Bays
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot-swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SATA/SAS
Dimensions & Weight
Depth :29.1 in
Height :3.4 in
Width :17.6 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :8 – 90% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :50 °F
Expansion Bays
Form Factor (metric) :6.4 cm SFF
Type :Hot-swap
Expansion Slots
Slot Comments :Riser card only
Type :Expansion slot
Type :M.2 Card
Type :mLOM
Hard Drive
Type :No HDD
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing

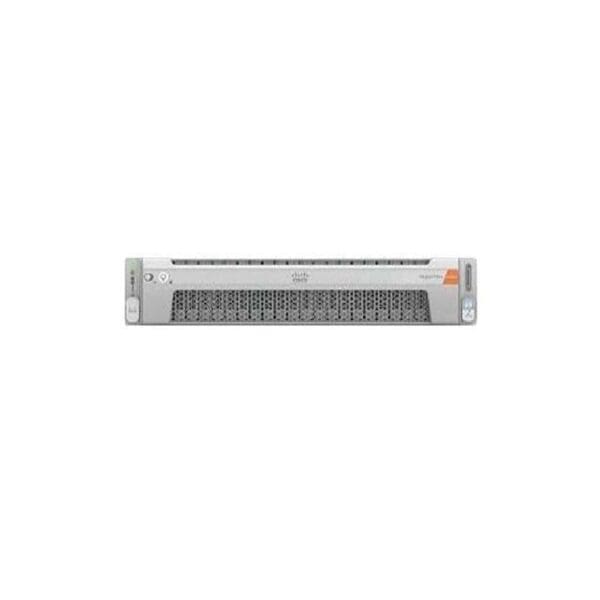

Model :HX240c M5
Packaged Quantity :1
Product Line :Cisco Hyperflex System
Interface Provided
Connector Type :DB-15
Type :VGA
Connector Type :RJ-45
Qty :2
Type :LAN (10 Gigabit Ethernet)
Location :1 internal
Qty :1
Type :KVM
Type :Management
Type :Serial
Type :USB 3.0
Miscellaneous
Color Category :Silver
Compliant Standards :ACPI 4.0, AS/NZS 60950-1, AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, CISPR 24, CISPR 32 Class A, CNS 13438 Class A, Directive 2014/30/EU, Directive 2014/35/EU, EN 300386, EN 55032 Class A, EN 60950-1 Second Edition, EN55024, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 A, GB4943.1-2001, ICES-003 Class A, IEC 60950-1 Second Edition, KN32 Class A, KN35, UL 60950-1 Second Edition, VCCI Class A
Height (Rack Units) :2U Rack Mount
Included Accessories :26 x SFF drive blanking panel, Bezel
Networking
Data Link Protocol :10 Gigabit Ethernet
Ethernet Controller(s) :Intel X550
Ethernet Ports :2 x 10 Gigabit Ethernet
Features :Wake on LAN (WoL)
Remote Management Controller :Cisco Integrated Management Controller
