Bay Provided
Form Factor :2.5″ SFF
Total Qty :8
Cable
Connectivity Details Type :10GBASE-CU SFP+ Cable
Cable Details
Qty :2
Cache Memory
Installed Size :70 MB
Installed Size :70
Per Processor Size :35 MB
Per Processor Size :35
Chassis
Form Factor :Rack-mountable
Hot-Swap Bays Qty :8
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot-swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SAS
Dimensions & Weight
Depth :29.8 in
Height :1.7 in
Width :16.9 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :41 °F
Expansion Bays
Form Factor (metric) :6.4 cm SFF
Type :Hot-swap
Expansion Slots
Type :CPU
Type :DIMM 288-pin
Type :PCIe
Type :SD card (internal)
Hard Drive
Installed Qty :1
Interface Class :Serial Attached SCSI
SSD Form Factor :2.5″
Type :SSD
Hard Drive (2nd)
Capacity :120 GB
Installed Qty :1
Interface Class :Serial SATA
Interface Type :Serial ATA-600
SSD Form Factor :2.5″
Type :SSD
Hard Drive (3rd)
Capacity :3.8 TB
Installed Qty :6
Interface Type :Serial ATA-600
Type :SSD
Header
Brand :Cisco
Compatibility :PC
Kit :Hardware and Subscription Bundle
Manufacturer :Cisco Unified Computing

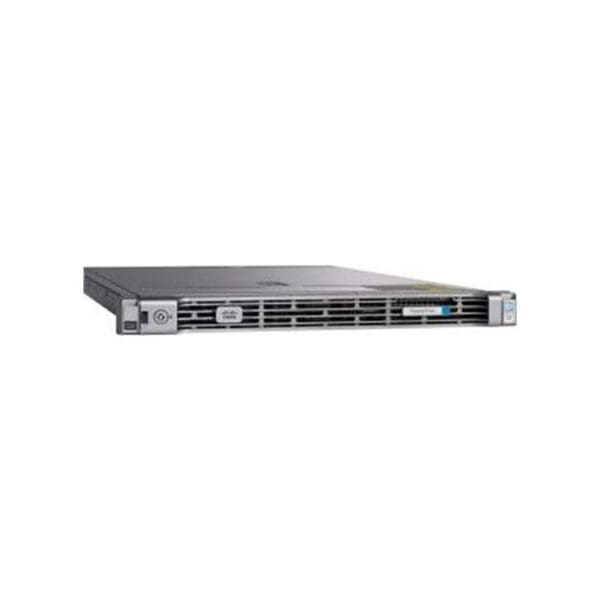

Model :Smart Play Select HX220c Hyperflex System
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Connector Type :RJ-45
Qty :1
Type :Serial
Connector Type :SFP+
Qty :2
Type :LAN (10 Gigabit Ethernet)
Type :KVM
Type :Management
Type :USB 3.0
Type :VGA
Mainboard
Chipset Type :Intel C612
Processor Socket :LGA2011-v3 Socket
Miscellaneous
Color Category :Gray, Silver
Height (Rack Units) :1
Included Accessories :2 x 64 GB SD Memory Card, 2 x CPU Heatsink, Bezel, Cisco Ball Bearing Rail Kit, CPU asset tab ID label
Networking
Data Link Protocol :10 Gigabit Ethernet, 10Gb Fibre Channel over Ethernet (FCoE), Gigabit Ethernet
Ethernet Controller(s) :Cisco UCS Virtual Interface Card 1227, Intel I350
Ethernet Ports :2 x Gigabit Ethernet, 2 x SFP+
Features :PXE support
Remote Management Controller :Cisco Integrated Management Controller
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Power Device
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Provided :770 Watt
Power Redundancy :Yes
Type :Power supply – hot-plug
Printer
Type :None
Processor
Clock Speed :2.6 GHz
Installed Qty :2
Manufacturer :Intel
Max Supported Qty :2
Max Turbo Speed :3.5 GHz
Number of Cores :14-core
Processor Main Features :Hyper-Threading Technology, Intel Smart Cache, Intel Turbo Boost Technology 2
Processor Number :E5-2690V4
Server Scalability :2-way
Type :Xeon
Upgradability :Upgradable
RAM
Configuration Features :16 x 32 GB
Data Integrity Check :ECC
Empty Slots :8
Features :Dual rank, Registered
Form Factor :DIMM 288-pin
Installed Size :512 GB
Installed Size :512
Max Supported Size :768 GB
Max Supported Size :768
Memory Specification Compliance :PC4-19200
Memory Speed :2400 MHz
Rated Memory Speed :2400 MHz
Slots Qty :24 DDR4 Slots
Technology :DDR4 SDRAM
