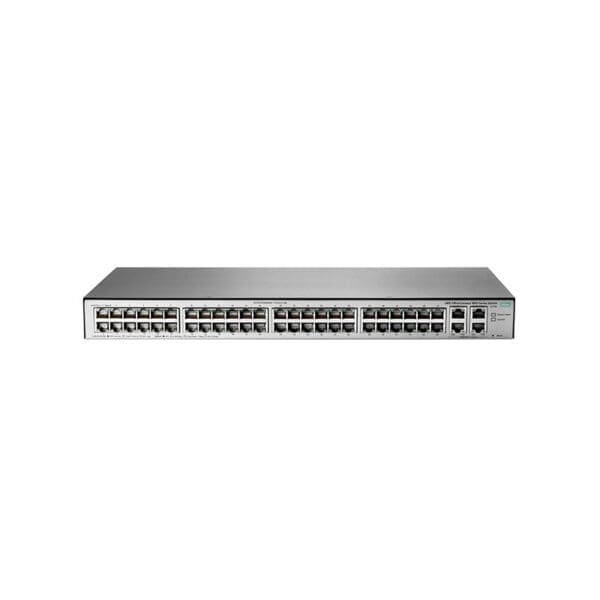

Device Type: Switch – 48 ports – managed
Manufacture Part Number: JL171A
Enclosure Type: Desktop, rack-mountable, wall-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 48 x 10/100/1000 + 4 x 10Base-T
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9220 bytes
Remote Management Protocol: SNMP 1, SNMP 2c, HTTPS
Encryption Algorithm: SSL
Processor: 1 x ARM Cortex-A9: 400 MHz
RAM: 128 MB DDR3 SDRAM
Expansion / Connectivity
Power
Power Device: Internal power supply
Voltage Required: AC 120/230 V (50/60 Hz)
Power Consumption Operational: 49.3 Watt
Miscellaneous: Rack Mounting Kit
Included
MTBF: 79.4 years
Dimensions & Weight
Width: 17.4 in
Depth: 9.7 in
Height: .7 in
Weight: 7.05 lbs
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
