Brand: Aruba
Product Line: HPE Aruba Instant On

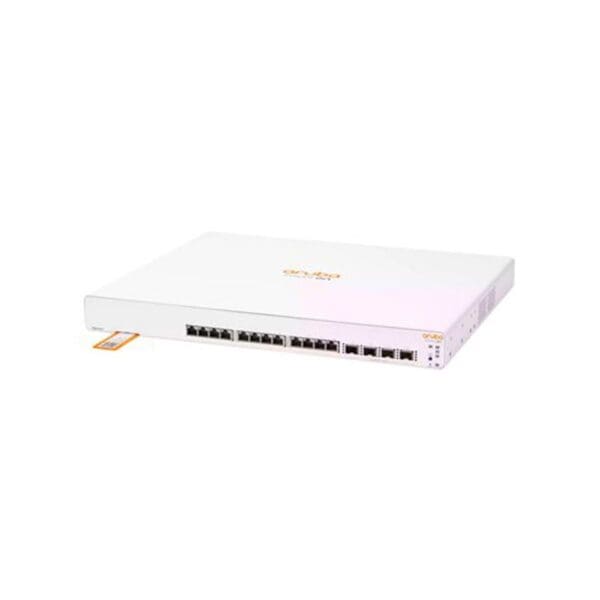

Model: 1960 12XGT 4SFP+ Switch
Manufacturer: Aruba Instant On
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 9216 bytes
MAC Address Table Size: 16000 entries
Manageable: Yes
Ports: 12
Product Type: Switch
Remote Management: HTTP, HTTPS, RADIUS, RMON, SCP, SNMP 1, SNMP 2c, SNMP 3, TFTP
Routing Protocol: IGMP, IGMPv2, IGMPv3, MLD, MLDv2, Static IPv4 routing
Smart: Yes
Stackable: Stackable
Status Indicators: Port status
Subcategory: Network hubs and switches
Switching Type: 10 Gigabit Ethernet
Interface Provided: 12 x 10Gbit LAN RJ-45, 4 x 10Gbit LAN SFP+
Port Quantity: 12
Port Type: 100/1000/10000
Ports Type (2nd): 10 Gigabit SFP+
Frequency: 50/60 hertz
Power Consumption Operational: 80 watt
Required Voltage: AC 100-240 volt
Height: 1.7 inch
Height (Rack Units): 1
Weight: 9.48 lbs
Width: 17.4 inch
Depth: 13.8 inch
Capacity: IPv4 routing table entries: 512, IPv6 routing table entries: 512
Device Type: Internal power supply
Packaged Quantity: 1
Performance: Latency (1 Gbps): 4.2 µs, Latency (10 Gbps): 1.1 µs, Latency (100 Mbps): 7.4 µs, Switching capacity: 320 Gbps, Throughput: 238 Mpps
Ports (2nd) Quantity: 4
Rack Mounting Kit: Included
Encryption: SSL
Humidity Range Storage: 15 – 95% (non-condensing)
Max Operating Temperature: 104 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
MTBF: 88.8 years
Operating Humidity: 15 – 95% (non-condensing)
