Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks JSA Series

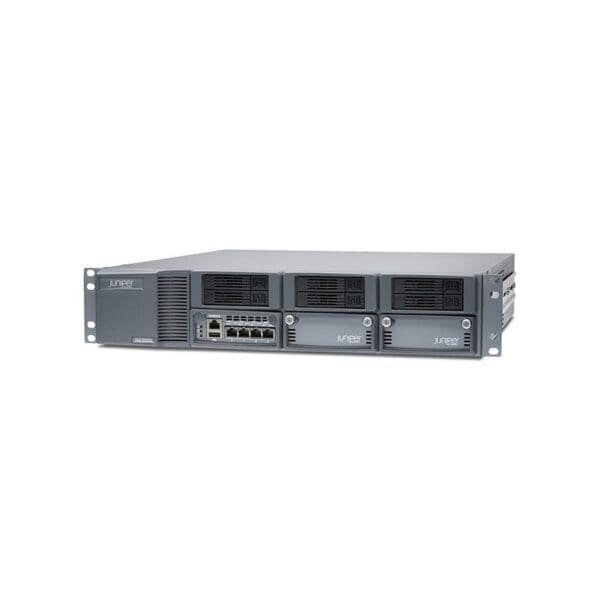

Model :JSA3500
Packaged Quantity :1
Processor
Installed Qty :1
RAM
Installed Size :32 GB
Storage Controller
RAID Level :RAID 10
Hard Drive
Type :HDD
Hot-Swap :Hot-swap
Interface Type :Serial ATA-300 / SAS
Installed Qty :6
Capacity :1 TB
Performance
Performance :Flow capacity: 100000 flows per minute, Event traffic: 5000 events per second
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :4
Connectivity Technology :Wired
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate :1 GBps
Features :Store and forward, sFlow, IPFIX, Flow control, Redundant hot swappable fans, J-Flow
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x expansion slot
Interface Provided
Interfaces :4 x 1000Base-T – RJ-45, 1 x management – RJ-45
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Installed Qty :1
Max Supported Qty :2
Power Provided :250 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
80 PLUS Certification :80 PLUS
Miscellaneous
Height (Rack Units) :2
Encryption Algorithm :SHA
Compliant Standards :EN55022 Class A, EN 61000-3-2, EN 60825-2, CSA C22.2 No. 60950-1, FCC Class A certified, HIPAA, PCI DSS, IEC 60950-1, EN55024, SOX, UL 60950-1, EN 60825-1, EN 60950-1, VCCI Class A
Dimensions & Weight
Width :17.7 inch
Depth :17.3 inch
Height :3.5 inch
Weight :28 lbs
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :8 – 90% (non-condensing)
