Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks JSA Series

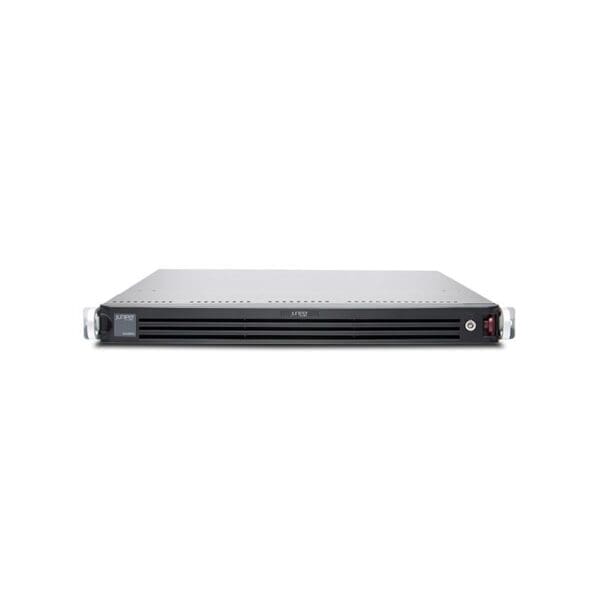

Model :JSA3800
Packaged Quantity :1
Processor
Installed Qty :1
RAM
Installed Size :64 GB
Storage Controller
RAID Level :RAID 10
Hard Drive
Type :HDD
Form Factor :2.5″
Form Factor (metric) :6.4 cm
Interface Type :Serial ATA-300 / SAS
Installed Qty :6
Capacity :900 GB
Performance
Performance :Event traffic: 5000 events per second, Flow capacity: 100000 flows per minute
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Data Link Protocol :Fast Ethernet, Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet
Data Transfer Rate :10 GBps
Features :IPFIX, Flow control, sFlow, NetFlow, 4 fans, Store and forward, J-Flow
Interface Provided
Interfaces :4 x 1000Base-T – RJ-45, 1 x console – RJ-45, 2 x 10Gb Ethernet – SFP+
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :2
Max Supported Qty :2
Power Provided :650 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Height (Rack Units) :1
Encryption Algorithm :SHA
Compliant Standards :EN 300386, EN55022 Class A, CISPR 22 Class A, AS/NZS CISPR 22, EN 61000-3-3, RoHS, BSMI CNS 13438 Class A, EN 61000-3-2, EN55024, FCC CFR47 Part 15, EN 60950-1, CISPR 24, UL 60950-1, CSA 22.2 No. 60950-1, ICES-003 Class A, VCCI Class A, KN22 Class A, IEC 60950-1
Dimensions & Weight
Width :17.2 inch
Depth :22.3 inch
Height :1.7 inch
Weight :28 lbs
Environmental Parameters
Min Operating Temperature :50 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :8 – 90% (non-condensing)
