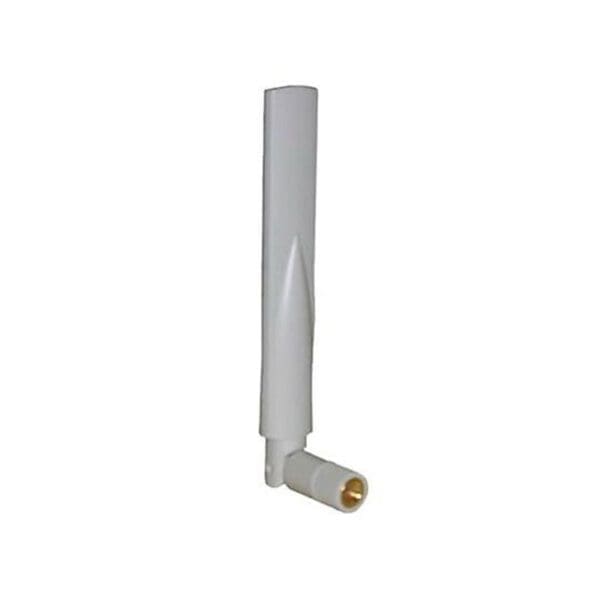

Manufacturer: HPE
Manufacturer Part Number: JW009A
Model
AP-ANT-1W
Manufacturer
Aruba
Network & Communication
Impedance
50 ohm
Connectivity
Connector Provided
1 x RP-SMA male
Technical Information
Antenna Gain
4 dBi (for 2400 MHz – 2500 MHz), 6 dBi (for 4900 MHz – 5875 MHz)
Antenna Placement
Indoor
Directivity
Omni-directional
Frequency Range
2.4 – 2.5 GHz, 4.9 – 5.875 GHz
Horizontal Beamwidth
360°
Max Operating Temperature
131 degree Fahrenheit
Min Operating Temperature
14 degree Fahrenheit
Vertical Beamwidth
25° (at 4.9 – 5.875 GHz), 50° (at 2.4 – 2.5 GHz)
Voltage Standing Wave Ratio (VSWR)
2.0:1
Product Information
Category of Accessory
Antennas
Features
Linear vertical polarization
Packaged Quantity
1
Service Activation
No
Stylus Type
Antenna
Dimensions & Weight
Height
5 inch
Width
0.7 inch
Depth
1.5 inch
