Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

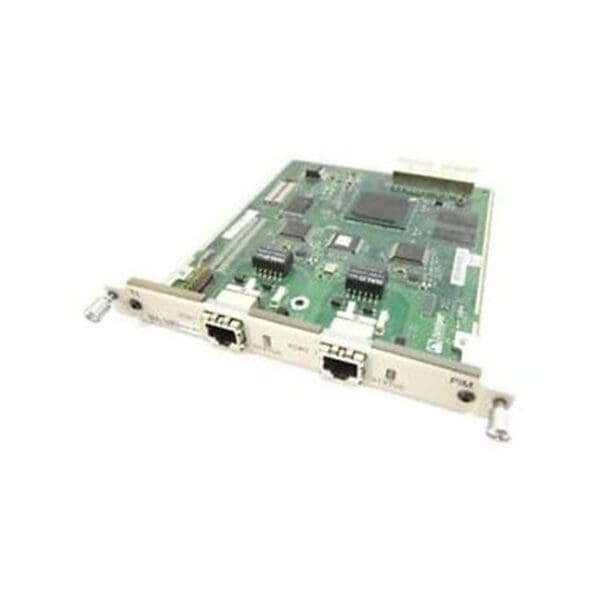

Model :Dual-port E1 Physical Interface Modules (PIM)
Packaged Quantity :1
Modem
Type :DSU/CSU
Form Factor :Internal
Connectivity Technology :Wired
Max Transfer Rate :2.048 MBps
Protocols & Specifications :HDLC
Features :Bit error rate tester (BERT)
Line Properties
Line Rate :Fractional E-1/E-1
Line Coding Format :HDB3
Framing Format :G.704, NO-CRC4
Networking
Compliant Standards :ANSI T1.403, ANSI T1.102, ANSI T1.107
Interface Provided
Interfaces :2 x network – E1-FE1 – RJ-48
Slot Required
Compatible Slots :1 x expansion slot
