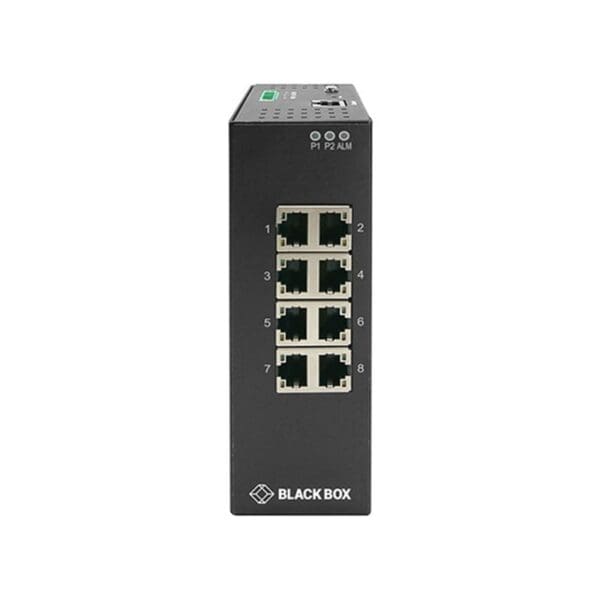

Device Type: Switch
Subtype: Gigabit Ethernet
Brand: Black Box
Ports Qty: 8
Family: Gigabit Ethernet
Width: 4.3 in
Color: Black
Height: 6.1 in
Weight: 2.2 lbs
Managed: Yes
Product Color: Black
Depth: 2.4 in
Failover Link loss recovery < 20ms; Single and multiple rings supported Link Aggregation Static trunk or Dynamic via LACP (Link Aggregation Control Protocol) MIBs RFC 1757 RMON 1,2,3,9; RFC 2674 Q-Bridge MIB;RFC-1213 MIB-II; RFC-1493 Bridge MIB; RFC 2233 IF MIB Operating Mode Store and forward; L2 wire-speed, non-blocking switching engine User Controls CLI, WEB-based Management; SNMP v1, v2c, v3; Telnet (5 sessions); HTTPs, SSH; Radius Client for Management; TFTP/FTP for Configuration Import/Export; TFTP/FTP for Firmware Upgrade; Syslog; RFC 1757 RMON 1,2,3,9; RFC 2674 Q-Bridge MIB; RFC-1213 MIB-II; RFC-1493 Bridge MIB; RFC 2233 IF MIB; DHCP; NTP/SNTP SFP Characteristics Data Rate 10/100/1000 Mbps Technology Category Ethernet Switch Standards CE; RoHS/WEEE; EN61000-6-2, EN61000-6-4; Jumbo Frame Support 9KB MAC Table Size 8K Network Management Network Redundancy IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s IEEE 802.1Q VLAN IEEE 802.1Q tag-based; IEEE 802.1ad Double Tagging; IGMP v1, v2; IGMP snooping and querying; Immediate leave and leave proxy; Throttling and filtering; IEEE 802.1ab Link Layer Discovery Protocol (LLDP) IP Security Port Security: IP and MAC-based access control; IEEE 802.1X authentication Network Access Control; Management security: HTTPs, SSH, Radius Client for Management QoS IEEE 802.1p, 4 queues per port; Scheduling schemes SPQ, WRR Protocols CLI, WEB-based Management; SNMP v1, v2c, v3; Telnet (5 sessions); HTTPs, SSH; Radius Client for Management; TFTP/FTP for Configuration Import/Export; TFTP/FTP for Firmware Upgrade; Syslog; RFC 1757 RMON 1,2,3,9; RFC 2674 Q-Bridge MIB; RFC-1213 MIB-II; RFC-1493 Bridge MIB; RFC 2233 IF MIB; DHCP; NTP/SNTP Power Rated Power Input: Redundant terminals, reverse power protection; 12-58 VDC; Maximum power: 14 Watts
