General
Category of Accessory :Antenna
Miscellaneous
Compatible With :Cisco Meraki MR42
Antenna
Antenna Placing Mounting :Ceiling mountable, Pole mount, Wall-mountable
Cable Length :3.3 ft
Directivity :Omni-directional
Form Factor :Panel
Frequency Range :2.4 – 2.5 GHz, 5.15 – 5.875 GHz
Gain :4.9 dBi
Horizontal Beamwidth :360°
Intended For :Wi-Fi
Vertical Beamwidth :60°
Environmental Parameters
Humidity Range Operating :5 – 95%
Max Operating Temperature :104 °F
Min Operating Temperature :32 °F
Header
Brand :Cisco Meraki
Manufacturer :CISCO DS HARDWARE DIRECT
Packaged Quantity :1
Product Line :Cisco Meraki
Interface Provided
Connector Qty :5
Connector Type :RP-TNC Connector
Miscellaneous
Color Category :White
Product Material :ABS plastic
Product Type :Antenna

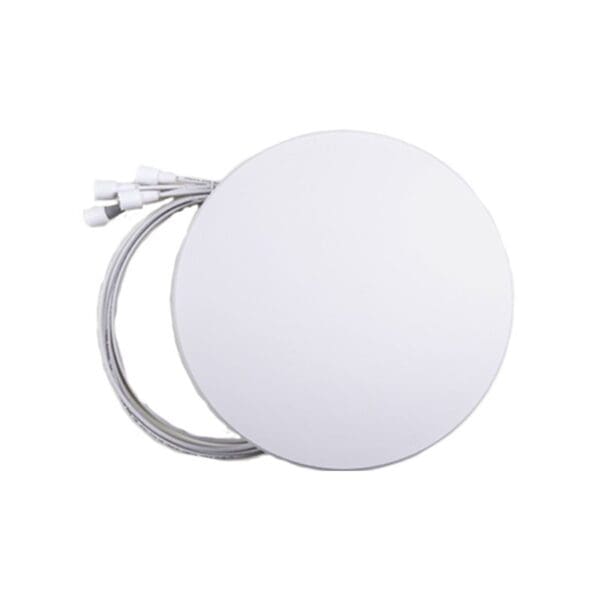

MA-ANT-3-C5 Cisco Meraki Antenna
$312.00
The Panel Omni antenna is ideal for low ceiling aesthetic consensus installations where wall penetration or extended reach are important. Some example uses are low density deployments like schools and hotels to provide basic low performance connectivity. These types of best effort deployments usually have APs installed in the hallway to cover adjacent rooms. This antenna supports Meraki’s smart antenna capabilities.
