Rack Mounting Kit: Included

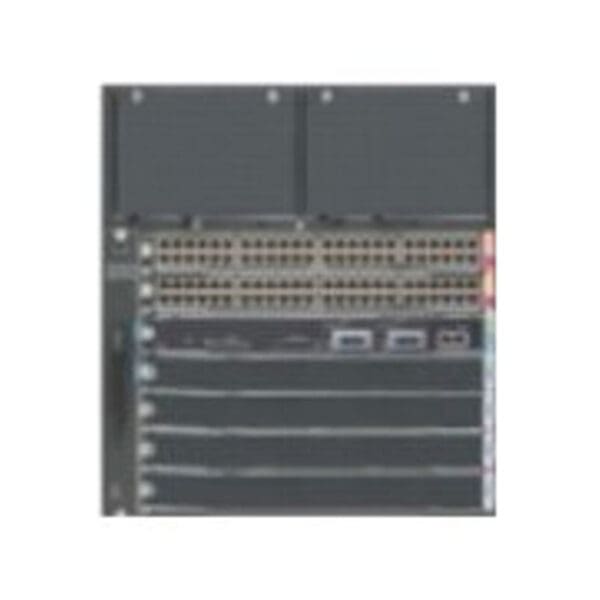

Manufacture Part Number: ME-4507E-S7L+96SFP
MTBF: 248,630 hours
Dimensions & Weight
Width: 17.3 in
Depth: 12.5 in
Height: 19.2 in
Environmental Parameters
Max Operating Temperature: 104 °F
Humidity Range Operating: 10 – 90% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 167 °F
General
Enclosure Type: Rack-mountable 11U
Subtype: Gigabit Ethernet
Ports: 96 x Gigabit SFP
MAC Address Table Size: 55K entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: PIM-SSM
Remote Management Protocol: RMON 1, RMON 2
Processor: 1: 1.5 GHz
RAM: 2 GB SDRAM
Flash Memory: 1 GB
Expansion / Connectivity
Power
Max Supported Qty: 2
Installed Qty: 0 (installed) / 2 (max)
Power Redundancy: Optional
Software / System Requirements
Software Included: Cisco IOS LAN Base
