Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks MX-series

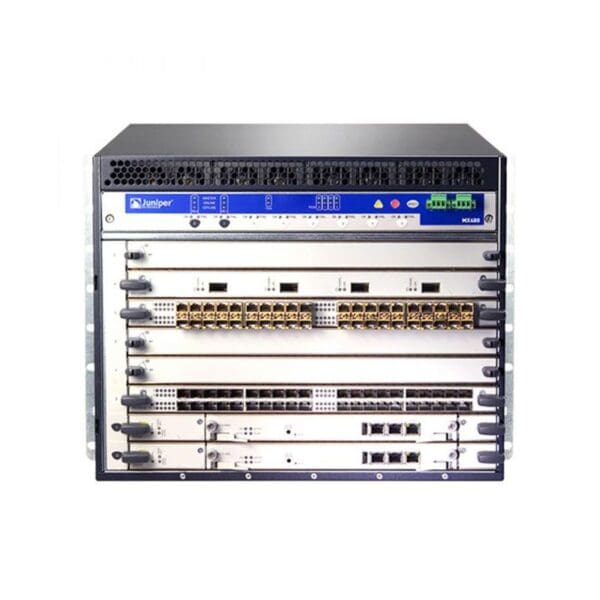

Model :MX480
Bundled with :Juniper Networks Switch Control Board, 1 x Routing Engine
Packaged Quantity :1
Chassis
Installed Devices / Modules Qty :2
Supported Devices / Modules Qty :8
Performance
Performance :Switching capacity: 5.76 Tbps, Per-slot switching capacity: 480 Gbps
Networking
Type :Router
Form Factor :Rack-mountable
Modular :Modular
Connectivity Technology :Wired
Data Link Protocol :Ethernet, Frame Relay, TDM, ATM
Routing Protocol :BGP, GRE, MPLS
Key Features :VPN support, Firewall
Expansion Slots
Expansion Slots :8 (total) / 6 (free) x expansion slot
Power Device
Type :Internal power supply
Installed Qty :3
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Dimensions & Weight
Width :17.5 inch
Depth :23.8 inch
Height :14 inch
