Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks NetScreen

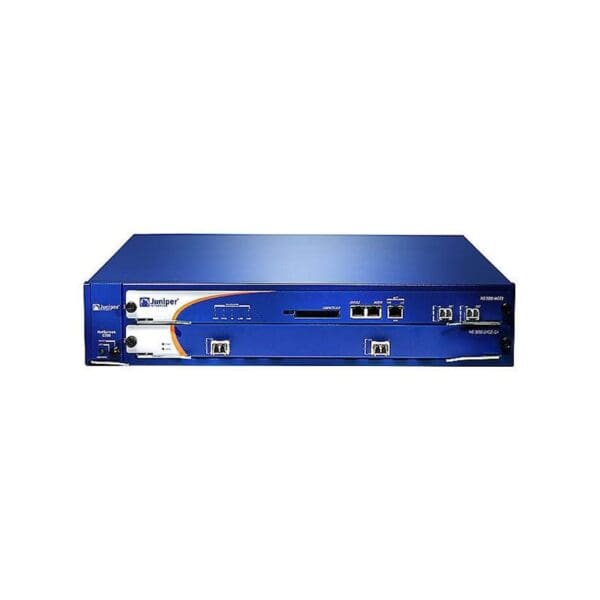

Model :5200
Packaged Quantity :1
Optical Storage
Type :None
Capacity
Capacity :Authenticated users (internal database): 25000, VPN tunnels: 16000, Concurrent VPN tunnels: 25000, VPN tunnel interfaces: 4095
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Routing Protocol :OSPF, RIP-1, Static IP routing, RIP-2, IGMP
Network / Transport Protocol :L2TP, PPPoE, IPSec, VoIP
Remote Management Protocol :SNMP 1, HTTP, SNMP 2
Features :DHCP support, DDos attack prevention, PAT support, NAT support, Syslog support, Modular design, DoS attack prevention, Firewall protection
IP Telephony
VoIP :Yes
VoIP Protocols :SCCP, MGCP, SIP, H.323
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x expansion slot
OS Provided
Type :ScreenOS
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Installed Qty :2
Max Supported Qty :2
Power Provided :150 watt
Nominal Voltage :AC 120/230 V
Miscellaneous
Encryption Algorithm :AES, Triple DES, MD5, SHA-1, PKI, DES, IKE, RSA
Authentication Method :SecurID, LDAP, X.509 certificates, RADIUS, Secure Shell (SSH)
Compliant Standards :CB, FCC Class A certified, VCCI Class A ITE, BSMI, EMC, NEBS level 3, cUL, C-Tick, UL, CSA
Dimensions & Weight
Width :17.5 inch
Depth :20 inch
Height :3.4 inch
Weight :37.04 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :113 degree Fahrenheit
Humidity Range Operating :10 – 90%
