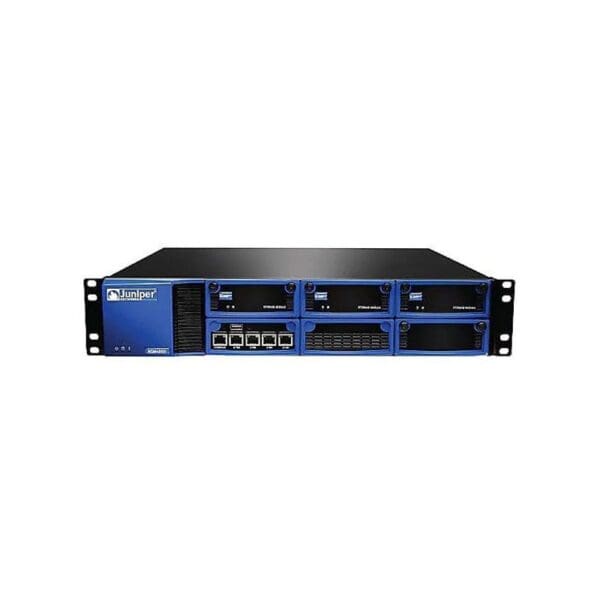

Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks Network and Security Manager
Model :4000
Packaged Quantity :1
Processor
Type :Xeon E3-1200 v2 series
Processor Number :E3-1225V2
Installed Qty :1
Manufacturer :Intel
Clock Speed :3.2 GHZ
RAM
Technology :DDR3 SDRAM
Installed Size :32 GB
Storage Controller
RAID Level :RAID 10
Hard Drive
Type :HDD
Hot-Swap :Hot-swap
Interface Type :Serial Attached SCSI
Installed Qty :6
Capacity :1 TB
Capacity
Capacity :Maximum number of managed appliances: 1500
Networking
Type :Network management device
Form Factor :Rack-mountable
Ports Qty :4
Connectivity Technology :Wired
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Features :Hot swappable fan
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x expansion slot (full-height)
Interface Provided
Interfaces :1 x USB – Type A, 4 x 1000Base-T (management) – RJ-45, 1 x console – RJ-45
Power Device
Type :Internal power supply
Power Redundancy :Optional
Installed Qty :1
Max Supported Qty :2
Power Provided :250 watt
Nominal Voltage :AC 100/230 V
Frequency Required :50/60 hertz
System Requirements
OS Required :JUNOS
Miscellaneous
License Qty :25 devices
Height (Rack Units) :2
Compliant Standards :EN 60825-1:2001, VCCI Class A, EN 60825-2:2000, FCC Class A certified, EN 55022 Class A, UL 60950-1:2003, CSA C22.2 No. 60950-1, IEC 60950-1:2001, EN60950-1:2001, EN 61000-3-2, EN 55024 Class A, EN 60825+A1+A2:1994
Dimensions & Weight
Width :17.7 inch
Depth :17.3 inch
Height :3.5 inch
Weight :27.56 lbs
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :8 – 90% (non-condensing)
