Model
Brand
ASUS
Model

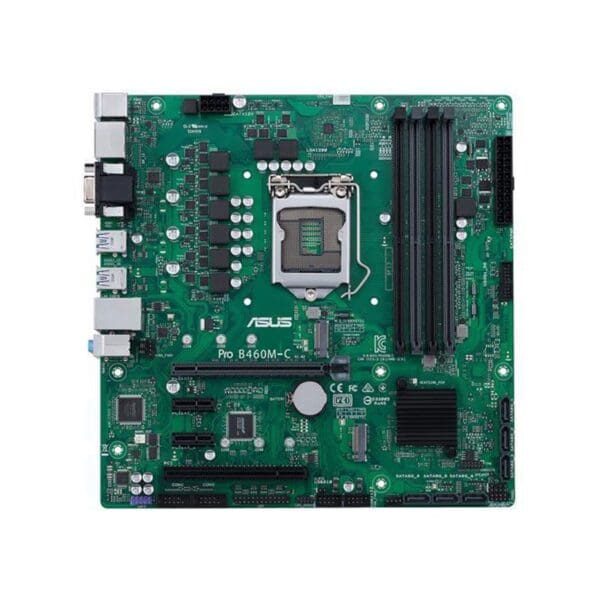

PRO B460M-C/CSM
Supported CPU
CPU Socket Type
LGA 1200
CPU Type
Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors *
* Refer to www.asus.com for CPU support list
Supported CPU Technologies
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset
Intel B460
Onboard Video
Onboard Video Chipset
Integrated Graphics Processor
2 x DisplayPort 1.4 **
1 x D-Sub
1 x HDMI 1.4b
* Graphics specifications may vary between CPU types.
** Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Memory
Number of Memory Slots
4×288pin
Memory Standard
DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
* 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported
128GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
1 x PCIe 3.0/2.0 x16 (x16 mode)
PCI Express x1
2 x PCIe 3.0/2.0 x1
PCI Slots
1 x PCI Slot
Storage Devices
SATA 6Gb/s
6 x SATA 6Gb/s
M.2
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*1
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)*2
*1 When a device in SATA mode is installed on the M.2_1 socket, SATA6G_1 port cannot be used.
*2 Only the M.2_2 supports IRST.
Intel Optane Ready
Yes
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC887
Audio Channels
7.1 Channels
* A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.
Onboard LAN
LAN Chipset
Intel I219-V
Max LAN Speed
10/100/1000Mbps
Rear Panel Ports
Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
2 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)
