Rack Mounting Kit: Included
Manufacture Part Number: Q0U83B
Compliant Standards: APM, FIPS 140-2 Level 2
Dimensions & Weight
Width: 17.2 in
Depth: 24 in
Height: 13.6 in
Weight: 54.01 lbs
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 5 – 93% (non-condensing)
Min Storage Temperature: -13 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 10 – 93% (non-condensing)
General

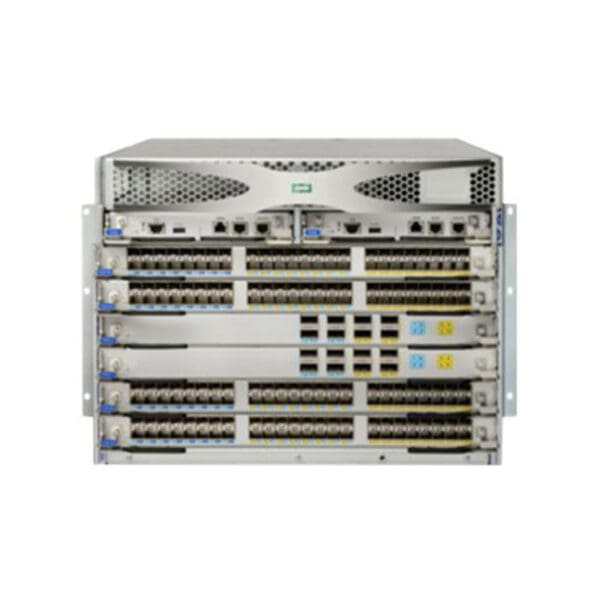

Device Type: Switch – managed
Enclosure Type: Rack-mountable 9U
Subtype Fibre Channel
Performance: Aggregate bandwidth: 8.1 Tbps
Fibre Channel: FC-IP
Encryption Algorithm: SSL, 256-bit AES-GCM
Expansion / Connectivity
Installed Modules Qty (Max): 0 (installed) / 4 (max)
Power
Power Device: Internal power supply – hot-plug
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
