General Information

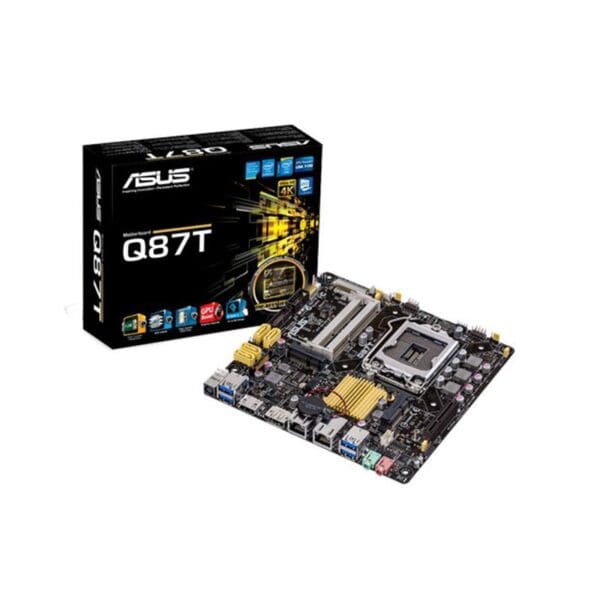

Product Name Q87T/CSM Q87 LGA1150 Socket 22NM CPU
Product Model Q87T/CSM
Product Type Desktop Motherboard
Audio
Audio Channels 7.1
Interfaces/Ports
Total Number of USB Ports 4
Number of USB 3.0 Ports 4
HDMI Yes
DisplayPort Yes
Number of Network (RJ-45) Ports 2
I/O Expansions
Number of Total Expansion Slots 3
Total Number of PCI Express Slots 1
Number of PCI Express x1 Slots 1
Memory
Number of Memory Slots 2
Memory Form Factor SoDIMM
Maximum Memory 16 GB
Memory Speed Supported 1600 MHz
1333 MHz
1066 MHz
Memory Standard DDR3-1600/PC3-12800
DDR3-1333/PC3-10600
DDR3-1066/PC3-8500
Memory Technology DDR3 SDRAM
Network & Communication
Gigabit Ethernet Yes
Processor & Chipset
Chipset Manufacturer Intel
Total Processor Supported 1
Processor Socket Socket H3 LGA-1150
Processor Supported Core i7
Core i5
Core i3
Pentium
Celeron
Video
Onboard Video On-board Video Chipset
Graphics Controller Manufacturer Intel
I/O Controller
Controller Type Serial ATA/600
mSATA
RAID Supported Yes
RAID Levels 0
1
5
1+0
Onboard Interfaces
Number of SATA Interfaces 4
Number of mSATA Interfaces 1
Total Number of Onboard USB Ports 7
Number of Onboard USB 2.0 Ports 5
Number of Onboard USB 3.0 Ports 2
Physical Characteristics
Form Factor Mini ITX
Width 6.7″
Depth 6.7″
Miscellaneous
Environmentally Friendly Yes
Other Information
64-bit Processing Yes
Sound Controller Manufacturer Realtek
Sound Controller Model ALC887-VD
Graphics Memory Technology DDR3 SDRAM
Graphics Memory Accessibility Shared
Number of Mini PCI Express Slots 2
Network (RJ-45) Yes
Audio Line In Yes
Audio Line Out Yes
Number of DisplayPort Outputs 1
Number of HDMI Outputs 1
Microphone Port Yes
Onboard Audio Header Yes
PCI Express Standard PCI Express 3.0
PCI Express 2.0
Certifications & Standards ACPI 2.0a
Power Supply Supported ATX12V
