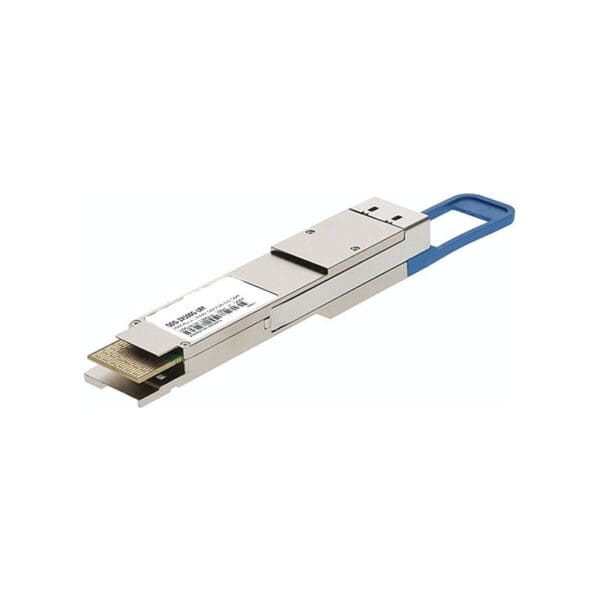

Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: QDD-2X100G-LR4
Brand Name: Juniper
Product Name: QSFP28-DD QSFP28 Module
Product Type: QSFP28
Technical Information
Application/Usage Data Networking, Optical Network
Interfaces/Ports
Interfaces/Ports Details: 1 x 100GBase-LR4 Network
Media & Performance
Media Type: Supported Optical Fiber
Ethernet Technology: 100 Gigabit Ethernet
Network Technology: 100GBase-LR4
Miscellaneous
Compatibility
Juniper PTX10003 Port Panels:
PTX10003-160C
PTX10003-80C
Environmentally Friendly: Yes
Environmental Certification: RoHS 2, WEEE, REACH
Standard: 100GBASE-LR4
MSA compliance (SFF, for e.g. SFF-8665): SFF-8665, CMIS 3.0
Digital Diagnostic Monitoring: Temperature, Supply voltage, TX bias current, TX power, RX power
Signaling rate, each lane: 25.78125 GBd +/- 100 ppm
Transceiver input/output fibers: 4
Typical Weight & Dimensions
Weight: 0.2 kg
Height: 13.5 mm
Width: 18.35 mm
Depth: 93.26 mm
