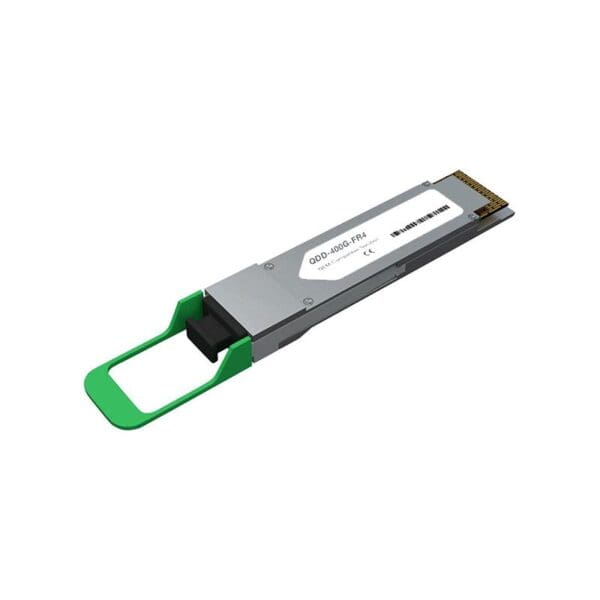

Product Name: QSFP56-DD 400G FR4 Transceiver
Manufacturer Part Number: QDD-400G-FR4
Product Type: QSFP56-DD
Ethernet Technology: 400 Gigabit Ethernet
Media Type: Supported Optical Fiber
Network Technology: 400GBase-FR4
Environmentally Friendly: Yes
Interfaces / Ports Details: 1 x 400GBase-FR4 Network
Digital Diagnostic Monitoring: Transceiver Temperature, Transceiver Supply Voltage, Tx Bias Current, Tx output power, Rx received optical power
Signaling rate, each lane: Host lane: 26.5625 GBd PAM4 +/-100 ppm, Media lane: 53.125 GBd PAM4 +/-100 ppm
Transmitter fibers: 2
Transmitter wavelengths (range): 1264.5 nm through 1277.5 nm, 1284.5 nm through 1297.5 nm, 1304.5 nm through 1317.5 nm, 1324.5 nm through 1337.5 nm
Receive lane wavelengths (range): 1264.5 nm through 1277.5 nm, 1284.5 nm through 1297.5 nm, 1304.5 nm through 1317.5 nm
