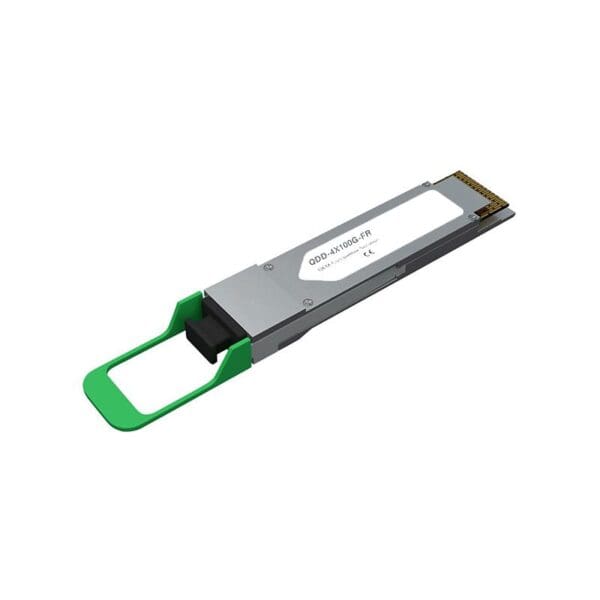

Product Name: QSFP56-DD 4X100G FR Pluggable Transceiver
Manufacturer Part Number: QDD-4X100G-FR
Product Type: QSFP56-DD
Ethernet Technology: 100 Gigabit Ethernet
Media Type: Supported Optical Fiber
Network Technology: 100GBase-X
Environmentally Friendly: Yes
Interfaces / Ports Details: 1 x 100GBase-X Network
Digital Diagnostic Monitoring: Transceiver Temperature, Transceiver Supply Voltage, Tx Bias Current, Tx output power, Rx received optical power
Supported applications: 100G-FR/100GBASE-FR1 (Cl 140), SMF 2 km, 100GBASE-DR (Cl 140), SMF 500 m< 400GBASE-DR4 (Cl 124), SMF 500 m Signaling rate, each lane: Host lane: PAM4; 26.5625 GBd ± 100 ppm, Media lane: PAM4; 53.125 GBd ± 100 ppm Transmitter fibers: 4 Transmitter wavelengths (range): 1304.5 nm to 1317.5 nm Receive lane wavelengths (range): 1304.5 nm to 1317.5 nm
