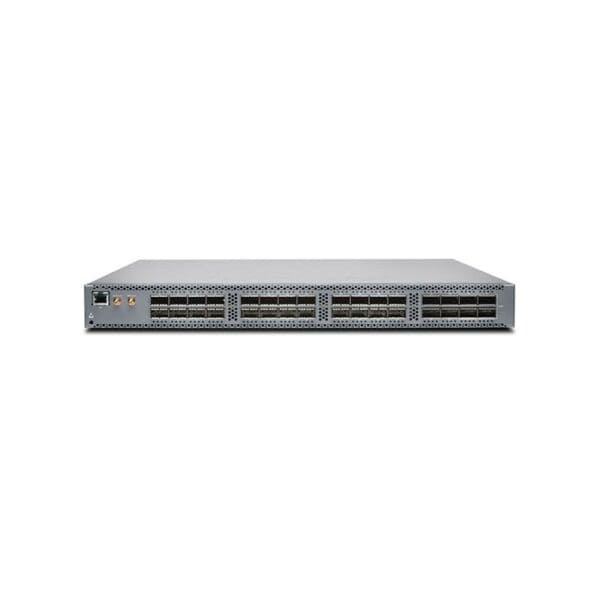

QFX5110-32Q-AFO Juniper QFX5110 32 Port Ethernet Switch

QFX5110-32Q-AFO Juniper QFX5110 32 Port Ethernet Switch

$18,499.00

Juniper QFX5110 32 Port Ethernet Switch Expansion Slot.The ports on the QFX5110-32Q support 40-Gbps or 100-Gbps speeds natively. Of the 28 QSFP+ ports, 0 through 19also support 10-Gbps speeds when the ports are configured as Flexi-pic and channelized using QSFP+ to SFP+ DAC breakout (DACBO) cables. Although all network ports can be configured as either uplink or as access ports, best practice is to configure the four QSFP28 ports (28 through 31) as uplinks to take advantage of the 100-Gbps speeds.

QFX5110-32Q-AFO Juniper QFX5110 32 Port Ethernet Switch
$18,499.00
Contact Us

Manufacturer :Netscreen

Brand :Juniper, Juniper Networks

Product Line :Juniper Networks QFX Series

Model :QFX5110-32Q

Packaged Quantity :1

Chassis

Airflow Direction :Front to back airflow

Built-in Devices :64 GB SSD

Processor

Installed Qty :1

Manufacturer :Intel

Clock Speed :1.8 GHZ

RAM

Installed Size :16 GB

Performance

Performance :Switching capacity: 2.56 Tbps, Switching capacity: 1.44 Bpps, Latency: 550 ns

Capacity

Capacity :ARP entries: 48000, LAG groups: 104, Multiple Spanning Tree Protocol instances: 64, VLAN Spanning Tree Protocol instances: 253, VSTP instances: 253, Equal-Cost Multipathing (ECMP) ways: 64, IPv4 routes (Unicast): 128000, Maximum member ports per LAG: 32, Virtual interfaces (VLANs): 4093, IPv4 hosts: 208000, IPv6 routes (Unicast): 84000, IPv6 routes (Multicast): 52000, IPv4 routes (Multicast): 104000, QoS hardware queues per port: 12

SKU: QFX5110-32Q-AFO Category: Tag:
