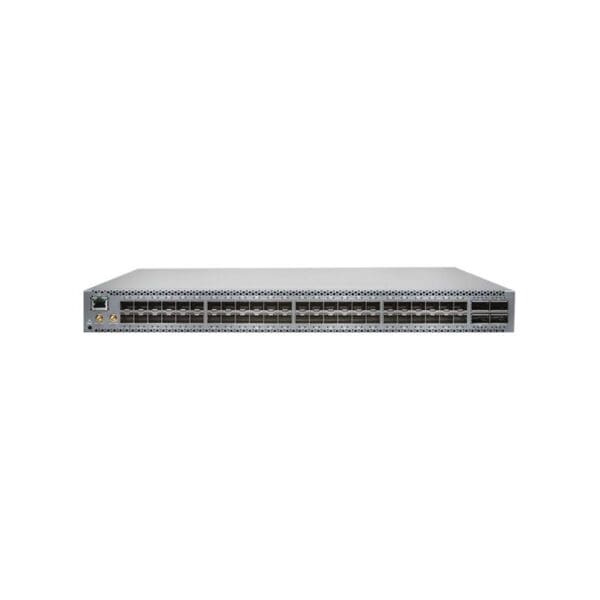

QFX5110-48S-AFI Juniper Networks QFX Series QFX5110-48S switch

QFX5110-48S-AFI Juniper Networks QFX Series QFX5110-48S switch

$4,999.00

A 10GbE/100GbE data center access switch, the QFX5110-48S offers 48 small form-factor pluggable plus (SFP+) transceiver ports and four QSFP28 ports, that can be configured as 4x40GbE or 4x100GbE ports, with a high aggregate throughput per switch. For added flexibility, each QSFP28 port can also be configured as 4x10GbE ports, using breakout cables, increasing the total number of supported 10GbE ports to 64 per switch.

QFX5110-48S-AFI Juniper Networks QFX Series QFX5110-48S switch
$4,999.00
Contact Us

Manufacturer :Netscreen

Brand :Juniper, Juniper Networks

Product Line :Juniper Networks QFX Series

Model :QFX5110-48S

Packaged Quantity :1

Chassis

Airflow Direction :Back to front airflow

Performance

Performance :Switching capacity: 1.76 Tbps, Switching capacity: 1.32 Bpps

Capacity

Capacity :MAC address entries: 288000, Firewall ingress filters: 6142, QoS hardware queues per port: 12, IPv6 routes (Multicast): 52000, MSTP instances: 64, ARP entries: 48000, LAG groups: 104, IPv4 routes (Unicast): 128000, IPv6 routes (Unicast): 84000, VSTP instances: 253, Jumbo frame size: 9216, Firewall egress filters: 1022, IPv4 routes (Multicast): 104000, Maximum member ports per LAG: 32, VLAN IDs: 4093

Networking

Type :Switch

Subcategory :Network hubs and switches

Subtype :10 Gigabit Ethernet

Form Factor :Rack-mountable

Ports Qty :48

SKU: QFX5110-48S-AFI Category: Tag:
