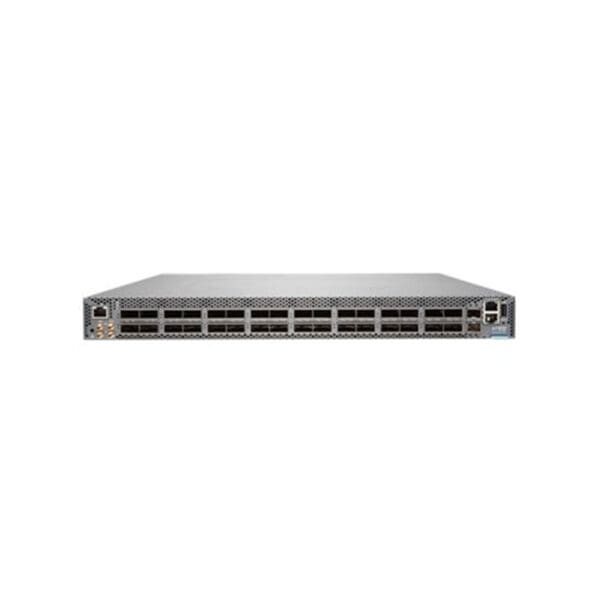

Device Type: Switch – 32 ports – L3 – managed
Enclosure Type: Front to back airflow rack-mountable 1U
Subtype: 400 Gigabit Ethernet
MAC Address Table Size: 8192 entries
Jumbo Frame Support: 9216 bytes
Processor: 1 x Intel Xeon D-1518
Expansion / Connectivity
Power
Power Device: Internal power supply – hot-plug
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1, 2N
Power Provided: 1600 Watt
Voltage Required: DC -48 -72 V
Power Consumption Operational: 958 Watt
80 PLUS Certification
80 PLUS Silver
Miscellaneous
Software / System Requirements
Software Included: Junos OS
Dimensions & Weight
Width: 17.2 in
Depth: 21.1 in
Height: 1.7 in
Weight: 24.49 lbs
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
