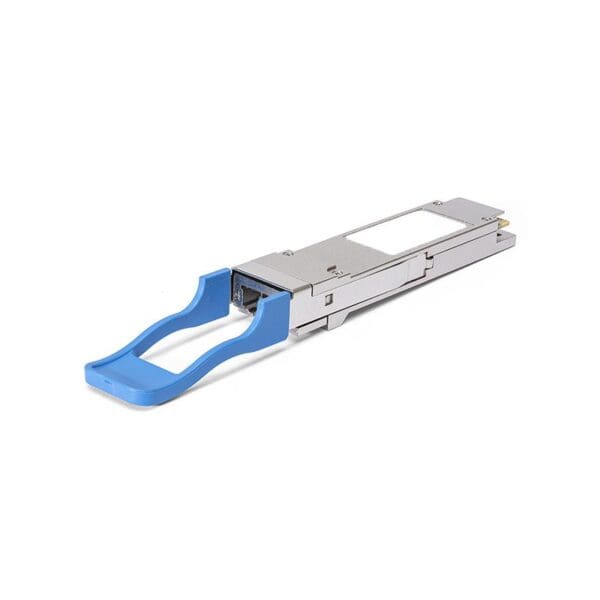

Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: QSFP-100GBASE-LR4
Brand Name: Juniper
Product Name: QSFP+ Module
Product Type: QSFP+
Technical Information
Application/Usage Optical Network, Data Networking
Interfaces/Ports
Interfaces/Ports Details: 1 x LC Duplex 100GBase-LR4 Network
Media & Performance
Media Type: Supported Optical Fiber
Ethernet Technology: 100 Gigabit Ethernet
Network Technology: 100GBase-LR4
Standard: 100GBASE-LR4
Standards compliance (Ethernet/OTN Standard, for e.g. 100GBASE-LR4): IEEE 802.3ba-2010
Transmitter wavelengths (range): 1294.53 nm through 1296.59 nm, 1299.02 nm through 1301.09 nm, 1303.54 nm through 1305.63 nm, 1308.09 nm through 1310.19 nm
Transmitter output power, each lane (minimum): –4.3 dBm
Transmitter output power, each lane (maximum): 4.5Â dBm
Receiver input power, each lane (minimum): –10.6 dBm
Receiver input power, each lane (maximum): 4.5Â dBm
Cable type: SMF
