General Information:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 221050-001
Product Name: Proliant 5000 Server.
Processor & Chipset:
Processor Type: Intel Pentium Pro 200 Mhz
Installed Qty: 1
Max Supported Qty: 4
Upgradability: Upgradable
Data Bus Speed: 66 Mhz
Cache Memory:
Cache Memory Type: L2 Cache-Pipeline Burst.
Installed Size: 512 Kb/2 Mb (Max)
Ram:
Installed Size: 128 Mb
Max Supported Qty: 4 Gb
Technology: Sdram-Ecc
Form Factor: Dimm 168-Pin
Upgrade Rule: 4 Modules At A Time
Storage & Storage Controller:
Floppy Drive: 3.5 1.44 Mb Floppy.
Hard Drive: None.
Hard Drive (2nd): None.

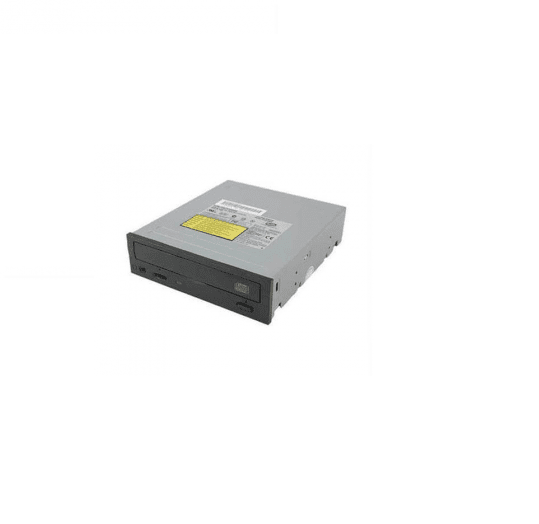

Optical Storage Type: Cd-Rom-Ide
Read Speed: 8x
Media Load Type: Tray
Storage Controller Type(1st): 1 X Scsi-Integrated-Pci
Controller Interface Type: Fast Wide Scsi
Storage Controller (2nd): 1 X Ide-Integrated-Pci
Controller Interface Type: Eide
Display & Graphics Controller:
Graphics Controller Type: Pci-Integrated.
Supported Display Graphics: Vga (640×480)
Video Output Supported: Rgb
Networking:
Networking: Network Adapter-Pci-Plug-In Card.
Data Link Protocol: Ethernet, Fast Ethernet
Remote Management Protocol: Snmp
Compliant Standards: Ieee 802.3, Ieee 802.3u
Expansion/Connectivity:
Expansion Bays Total (Free):
5 ( 5 ) X Hot-Swap-3.5 X 1/2h
1 ( 0 ) X Front Accessible-3.5 X 1/3h
2 ( 1 ) X Front Accessible-5.25 X 1/2h
Expansion Slots Total (Free):
2 ( 1 ) X Processor Board
2 ( 1 ) X Processor-Socket 8
5 ( 4 ) X Pci-Full-Length
1 ( 1 ) X Eisa-Full-Length
2 ( 2 ) X Shared Pci/Eisa-Full-Length
Interfaces:
1 X Storage-Fast Wide Scsi-68 Pin Hd D-Sub (Hd-68)
1 X Network-Ethernet 10base-T/100base-Tx-Rj-45
1 X Parallel-Ieee 1284 (Epp/Ecp)-26 Pin Hd D-Sub
2 X Serial-Rs-232-9 Pin D-Sub (Db-9)
V1 X Display/Video-Vga-15 Pin Hd D-Sub (Hd-15)
1 X Mouse-Generic-6 Pin Mini-Din (Ps/2 Style)
1 X Keyboard-Generic-6 Pin Mini-Din (Ps/2 Style)
Power Device:
Power Device Type: Power Supply-Hot-Plug/Redundant
Voltage Required: Ac 110/220 V ± 10% ( 50/60 Hz )
Power Consumption Operational: 488 Watt
