GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 230038-001

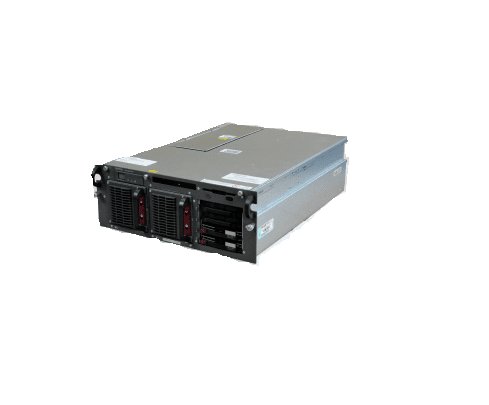

Product Name: Storage work Nas Executor E7000 Model
4U Rack Mount
PROCESSOR / MEMORY:
Processors Installed: 2 X Intel Xeon 900 Mhz
Installed Ram Size: 2 Gb Dram
Max Supported Size: 4 Gb
STORAGE:
Hard Drive: 2 X 36.4 Gb
Interface Type: Ultra160 Scsi
Optical Storage: 24x Cd-Rom – Ide
Floppy Drive: 1.44 Mb Floppy Drive
STORAGE CONTROLLER:
Storage Controller Type: Raid – Integrated
Interface Type: Pci
Controller Interface Type: Ultra160 Scsi
Data Transfer Rate: 160 Mbps
Supported Devices: Hard Drive, Tape Drive, Disk Array (Raid)
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10
DISPLAY & GRAPHICS:
Video Output: Graphics Adapter – Pci
Video Ram Installed: 4 Mb
Max Resolution (External): 24-Bit (16.7 Million Colors) / 1280 X 1024
NETWORKING & COMMUNICATION:
Network Type: Network Adapter – Plug-In Card
Data Link Protocol: Ethernet, Fast Ethernet
Transport Protocol: Tcp/Ip
Networking Standards: Ieee 802.3, Ieee 802.3u
I/O EXPANSION:
Expansion Bays Total (Free):
4 ( 2 ) X Hot-Swap – 3.5 X 1/3h
1 ( 0 ) X Front Accessible – 5.25 X 1/2h
1 ( 0 ) X Front Accessible – 3.5 X 1/3h
Expansion Slots Total (Free):
4 ( 2 ) X Processor – Slot 2
8 ( 4 ) X Memory
2 ( 1 ) X Pci 64 Hot-Plug 66 Mhz
2 ( 0 ) X Pci 64 Hot-Plug 33 Mhz
1 ( 0 ) X Pci 64 / 33 Mhz
1 ( 1 ) X Pci
INTERFACES:
1 X Storage – Ultra2 Wide Scsi – 68 Pin Hd D-Sub (Hd-68)
1 X Parallel – Ieee 1284 (Epp/Ecp) – 25 Pin D-Sub (Db-25)
1 X Serial – Rs-232c
1 X Mouse – Generic
1 X Keyboard – Generic
4 X Network – Ethernet 10base-T/100base-Tx – Rj-45
POWER DESCRIPTION:
Power Device Type: Power Supply – Hot-Plug
Power Device: 2 ( 2 ) X Power Supply – Hot-Plug – Plug-In Module
Voltage Required: Ac 110/220 V ± 10%
Power Provided: 450 Watt
Compliant Standards: Epa Energy Star
