General Information:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 263635-001

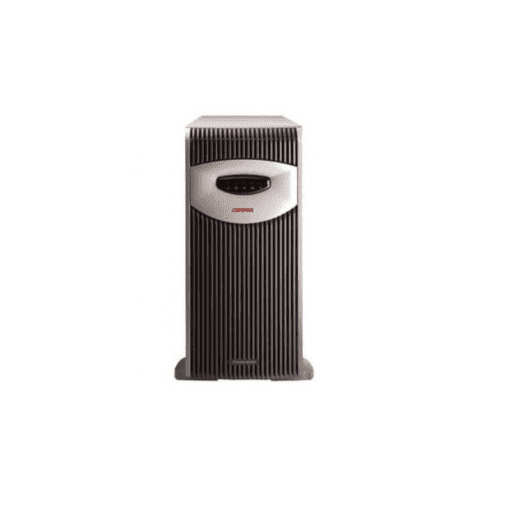

Product Name: Proliant Ml350 Gen2 Server (5U Tower)
Processor & Chipset:
Installed Processor: (1) Intel Pentium 3 Fc-Pga2 1.26GHz
Max Supported Qty: 2
Cache: 512 Kb
Chipset: Serverworks Le 3.0
Fsb: 133 Mhz
Ram:
Installed Size: 256mb / 4 GB (Max)
Technology: Pc133-Mhz Registered Ecc Sdram Dimm Memory
Form Factor: Dimm 168-Pin
Storage Controller:
Raid Controller(1st): 1 X Integrated Dual Channel Wide Ultra3 Scsi Adapter
Raid Controller(2nd): Smart Array 532 Controller
Storage:
Hard Drive: None.
Hard Drive Interface: Support For Up To Six 1inch Wide Ultra3 Scsi Hot Plug Hard Drives
Hard Drive Bays: 6 Front Accessible Hot-Swap Bays
Optical Storage: 40x Cd-Rom – Ide
Floppy Drive: 3.5 1.44 Mb Floppy
Display & Graphics:
Graphics Controller: Integrated Ati Rage Xl Video Controller With 8-Mb Sdram Video Memory
Networking:
Networking: Compaq Nc3163 Fast Ethernet Nic (Embedded)
Data Link Protocol: Ethernet, Fast Ethernet
Features: Wake On Lan (Wol)
Compliant Standards: Ieee 802.3, Ieee 802.3u
I/O Expansion:
Expansion Slots Total (Free):
I/O (6 Total, 6 Available) Pci Voltage:
64-Bit/33mhz, Pci 5 (5 Available) (Array Model Has 4 Available) 3.3 Volt
32-Bit/33mhz, Pci 1 (1 Available) 5 Volt
Power Description:
Device Type: Power Supply
Installed Qty: 1
Max Supported Qty: 1+1(Optional Hot Plug Redundant)
Voltage Required: Ac 110/220
Power Provided: 350 Watt
