GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 267122-001

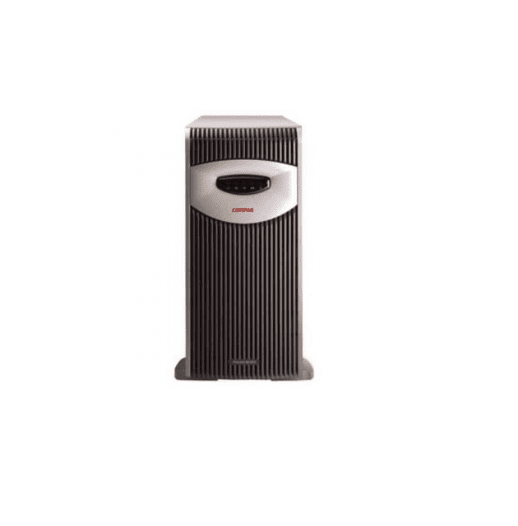

Product Name: Proliant Ml350 G3 Tower 5u Tower Server
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon 2 Ghz
Installed Processor Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable
Chipset Type: Serverworks Grand Champion Le
Data Bus Speed: 400 Mhz
CACHE MEMORY:
Type: L2 Cache – Advanced Transfer Cache
Installed Size: 512 Kb
Cache Per Processor: 512 Kb
MEMORY:
Installed Ram Size: 256 Mb / 8 Gb (Max)
Technology: Ddr Sdram – Ecc
Memory Speed: 266 Mhz
Memory Specification Compliance: Pc2100
Form Factor: Dimm 184-Pin
STORAGE:
Floppy Drive: 3.5 1.44 Mb Floppy
Hard Drive: None.
Internal Storage: 1.174 Tb Maximum Hot Plug (With Optional Hard Drives & Drive Cage)
Optical Storage Type: Cd-Rom – Ide
Read Speed: 48x
Media Load Type: Tray
STORAGE CONTROLLERS:
Storage Controllers Type: 1 X Scsi – Integrated
Controller Interface Type: Ultra160 Scsi
Channel Qty: 2
STORAGE CONTROLLER (2ND):
Storage Controller Type: 1 X Ide – Integrated
DISPLAY & GRAPHICS:
Graphics Controller Type: Integrated
Graphics Processor: Ati Rage Xl
Video Memory: 8 Mb / 8 Mb (Max) Sdram
NETWORKING:
Networking: Network Adapter – Integrated
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Features: Wake On Lan (Wol)
EXPANSION & CONNECTIVITY:
Expansion Bays Total (Free):
6 ( 6 ) X Hot-Swap – 3.5 X 1/3h
3 ( 2 ) X Front Accessible – 5.25 X 1/2h
1 ( 0 ) X Front Accessible – 3.5 X 1/3h
Expansion Slots Total (Free):
2 ( 1 ) X Processor – Socket 603
4 ( 3 ) X Memory – Dimm 184-Pin
4 ( 4 ) X Pci-X / 100 Mhz 1 ( 1 ) X Pci
INTERFACES & PORTS:
2 X Usb – 4 Pin Usb Type A
1 X Serial – Rs-232 – 9 Pin D-Sub (Db-9)
1 X Parallel – Ieee 1284 (Epp/Ecp) – 25 Pin D-Sub (Db-25)
1 X Keyboard – Generic – 6 Pin Mini-Din (Ps/2 Style)
1 X Mouse – Generic – 6 Pin Mini-Din (Ps/2 Style)
1 X Display / Video – Vga – 15 Pin Hd D-Sub (Hd-15)
1 X Network – Ethernet 10base-T/100base-Tx/1000base-T – Rj-45
