General Information :
Manufacturer: Hewlett-Packard
Manufacturer part number: 271246-001

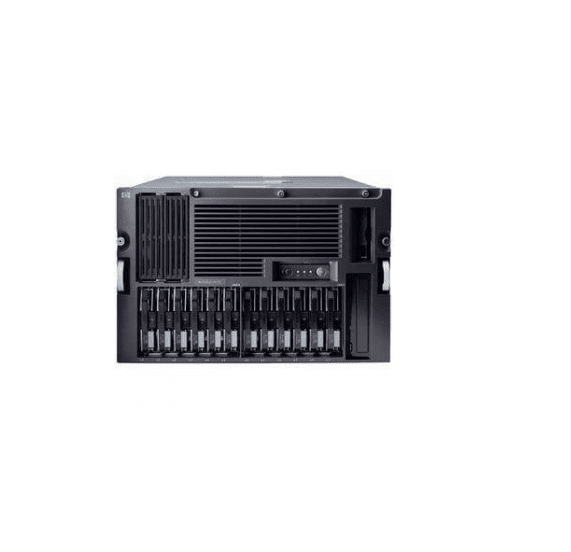

Product name: proliant ml530 Gen2 7U Rack Mount
Processor & chipset :
Processor type : intel xeon 3.0 GHz
Installed processor : 2
Max supported qty : 2
Chipset type : serverworks grand champion he
Data bus speed : 400 mhz
Cache memory :
Cache memory type : l2 cache
Installed size : 1 mb
Cache per processor : 512 kb
Memory :
Installed size : 1 gb
Max supported qty : 16 gb
Technology : ddr-200/pc1600 sdram-ecc
Features : registered
Upgrade rule : 2 modules at a time
Storage :
Hard drive : none
Hard drive interface : wide ultra3 scsi
Drive bays : up to 12 hard drive bays
Optical storage : 40x ide cd-rom drive
Floppy drive : 1.44 mb floppy
Storage controller :
Storage controller (1st) type : 1 x scsi-integrated-pci 64
Controller interface type: ultra160 scsi
Channel qty: 2
Storage controller (2nd) type : 1 x ide – integrated
Display & graphics controller :
Graphics controller type: pci-integrated
Graphics processor: ati rage xl
Video memory: sdram
Installed size: 8 mb/8 mb (max)
Display resolution : 1600 x 1200 65536 colors (16-bit)
Color support : 16.7 million colors (24-bit)
Networking :
Networking: network adapter – pci – integrated
Data link protocol: ethernet, fast ethernet
Features: wake on lan (wol)
Compliant standards: ieee 802.3, ieee 802.3u
Expansion & connectivity :
Expansion bays total (free):
12 ( 12 ) x hot-swap – 3.5 in x 1/3h
1 ( 0 ) x front accessible – 3.5 in x 1/3h
3 ( 2 ) x front accessible – 5.25 in x 1/2h
2 ( 0 ) x drive cage
Expansion slots total (free) :
8 ( 6 ) x memory
2 ( 0 ) x processor – socket 603
3 ( 3 ) x pci-x / 100 mhz
4 ( 4 ) x pci-x hot-plug 100 mhz
Interfaces :
1 x network – ethernet 10base-t/100base-tx – rj-45
1 x mouse – generic – 6 pin mini-din (ps/2 style)
1 x keyboard – generic – 6 pin mini-din (ps/2 style)
1 x display & video – vga – 15 pin hd d-sub (hd-15)
1 x parallel – ieee 1284 (epp/ecp) – 25 pin d-sub (db-25)
2 x serial – rs-232 – 9 pin d-sub (db-9)
1 x storage – ultra160 scsi
2 x usb – 4 pin usb type a
