GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 338974-B21

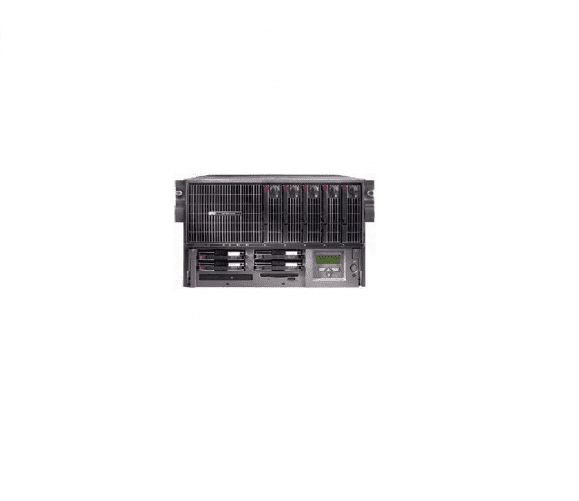

Product Name: Proliant Dl760 G2 7u Rack Mount Server
Server Type: Enterprise Server
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon Mp 2.5 GHz
Installed Processor Qty: 4
Max Supported Qty: 8
Bus Speed: 400 Mhz
Processor Cache: 1mb L3 On-Processor
Chipset Type: Hewlett-Packard F8
CACHE MEMORY:
Type: L2 Cache
Installed Size: 4 Mb
Cache Per Processor: 1 Mb
MEMORY:
Installed Ram Size: 4 Gb / 64 Gb (Max)
Technology: 133mhz Pc133 Sdram – Ecc
Form Factor: Dimm 168-Pin
STORAGE CONTROLLER:
Raid Controller Smart Array 5i Dual-Channel 32mb Integrated Ultra3 Scsi Raid 0, 1, 1+0, 5 Raid Level(S)
Storage Controller Type: 1 X Raid – Integrated – Pci-X / 100 Mhz
Controller Interface Type: Ultra160 Scsi
Channel Qty: 2
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size: 64 Mb
STORAGE:
Hard Drive: None
Hard Drive Interface: Ultra3/Ultra160 Scsi Hot Plug Hard Drives
Optical Storage: 24x Ide Cd-Rom – Ide
Floppy Drive: 3.5 1.44 Mb Floppy
DISPLAY & GRAPHICS:
Video Ati Rage Xl 8mb Sdram Integrated
NETWORKING:
Networking: (2) Nc7770 Pci-X Gigabit Nic (Embedded)
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Compliant Standards: Ieee 802.3
POWER DESCRIPTION:
Device Type: Power Supply – Hot-Plug
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 1150 Watt
