General information :
Manufacturer: hewlett-packard
Manufacturer part number: 345320-001

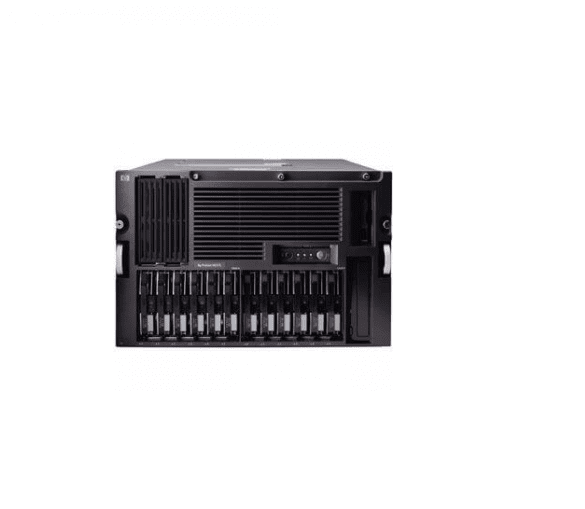

Product name: proliant ml570 g2 7u rack mount server
Processor & chipset :
Processor type: intel xeon mp 3.0GHz
Installed qty: 2
Max supported qty: 4
Upgradability: upgradable
Chipset type: serverworks grand champion he
Data bus speed: 400 mhz
Cache memory :
Cache memory type: l3 cache
Installed size: 2 mb
Cache per processor: 1 mb
Memory :
Installed size: 1 gb
Maximum size : 32 gb
Technology: ddr sdram-ecc
Memory speed:200 mhz
Memory specification compliance: pc1600
Form factor: dimm 184-pin
Features: registered
Storage & storage controller :
Hard drive: none
Optical storage:48x cd-rom-ide
Floppy drive : 3.5in 1.44 mb floppy
Storage controller type(1st): 1 x scsi-integrated
Controller interface type: ultra160 scsi
Channel qty: 2
Storage controller type(2nd): ide-integrated
Controller interface type: eide
Display graphics controller :
Graphics controller type: pci-integrated
Graphics processor: ati rage iic
Installed size: 8 mb
Networking :
Networking:network adapter-integrated
Data link protocol:ethernet,fast ethernet, Gigabit Ethernet
Features:wake on lan (wol)
Compliant standards:ieee 802.3, ieee 802.3u
Expansions & connectivity :
Expansion bays total (fre) :
12 ( 12 ) x hot-swap – 3.5in x 1/3h
1 ( 0 ) x front accessible – 3.5in x 1/3h
3 ( 2 ) x front accessible – 5.25in x 1/2h
Expansion slots total (free):
4 ( 2 ) x processor.
8 ( 6 ) x memory – dimm 184-pin
4 ( 4 ) x pci-x hot-plug 100 mhz
3 ( 3 ) x pci-x / 100 mhz
Interfaces & ports :
1 x parallel – ieee 1284 (epp/ecp) – 25 pin d-sub (db-25)
2 x serial – rs-232 – 9 pin d-sub (db-9)
1 x mouse – generic – 6 pin mini-din (ps/2 style)
1 x display & video – vga – 15 pin hd d-sub (hd-15)
1 x keyboard – generic – 6 pin mini-din (ps/2 style)
1 x network – ethernet 10base-t/100base-tx – rj-45
2 x usb – 4 pin usb type a
1 x storage – ultra160 scsi – 68 pin vhdci (mini-centronics)
