GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 353830-001

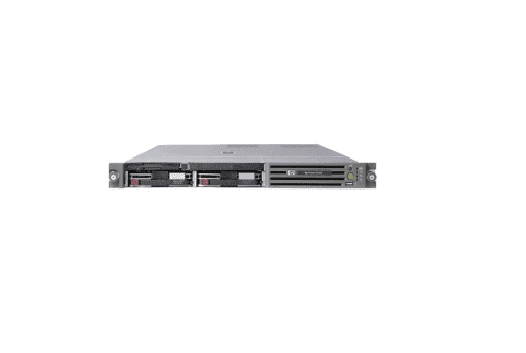

Product Name: Proliant Dl360 Server
1U Rack Mount
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon 3.2 Ghz
Installed Processor Qty: 1
Max Supported Qty: 2
Processor Compatible Slots: Socket 604
Cache Memory: 2 Mb L2
Fsb: 533 Mhz
Chipset: Serverworks Grand Champion Le
CACHE MEMORY:
Cache Memory Type: L3 Cache
Installed Size: 2 MB
Cache Per Processor: 2 MB
MEMORY:
Installed Ram Size: 2 GB
Max Supported Qty: 8 GB
Memory Speed: 266 Mhz
Memory Specification Compliance: Pc2100
Form Factor: Dimm 184-Pin
Number Of Memory Slots: 4
STORAGE:
Floppy Drive: 3.5 1.44 Mb Floppy.
Hard Drive: None.
Optical Storage Type: Cd-Rom – Ide.
Read Speed: 24x
STORAGE CONTROLLERS:
Storage Controller Type: 1 X Raid – Integrated – Pci-X / 100 Mhz.
Controller Interface Type: Ultra160 Scsi.
Storage Controller Name: Smart Array 5i Plus Controller
Channel Qty: 2
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size: 64 Mb
DISPLAY & GRAPHICS:
Graphics Controller Type: Pci – Integrated.
Graphics Processor: Ati Rage Xl.
Video Memory: Sdram
Installed Size: 8 Mb / 8 Mb (Max)
NETWORKING:
Two Nc7781 Pci-X Gigabit Nics
Networking: Network Adapter – Pci-X / 66 Mhz – Integrated.
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet.
Ethernet Controller(S): Hp Nc7781
Compliant Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER DESCRIPTION:
Power Device Type: Power Supply – Hot-Plug.
Power Redundancy: Yes.
Power Redundancy Scheme: 1+1
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 325 Watt
