GENERAL INFORMATION:
Manufacturer: Hewlett-Packard.
Manufacturer Part Number: 360520-B21

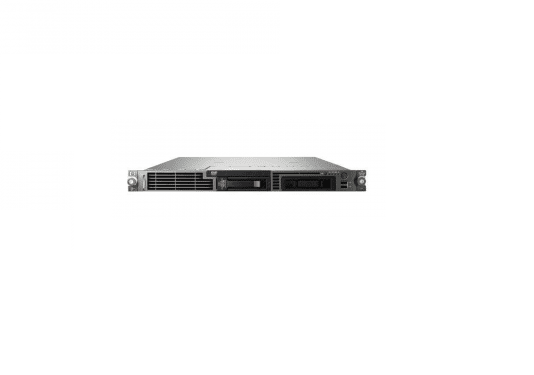

Product Name: Proliant Dl145 Rack Server (1U Rack Mount)
PROCESSOR & CHIPSET:
Processor Type : Amd Opteron 248 / 2.2 Ghz
Installed Qty : 1
Max Processors Supported : 2
64-Bit Processor : Yes.
Technology : Hyper Transport Technology.
Cache Memory : 1 Mb L2 Cache
Fsb : 1600 Mhz
MEMORY :
Installed Size : 2gb (2 X 1gb)
Max Supported Qty : 16 Gb
Technology : Ddr-333/Pc2700 Sdram
Memory Protection : Advanced Ecc
Ram Form Factor : Dimm 184-Pin
Ram Slots : 8 DDR Slots Total
STORAGE :
Hard Drive Capacity : 2 X 40gb Non-Hot Plug Ata Drive Standard.
Hard Drive Interface : Ultra Ata-100
Hard Drive Bays : (2) Non-Hot Pluggable Drive 2 Bay
Optical Storage : None
Diskette Drives : None
STORAGE CONTROLLER :
Storage Controller Type : 1 X Ide – Integrated – Pci.
Controller Interface Type : Ata-100
Channel Qty : 2
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated.
Graphics Processor : Ati Rage Xl
Video Memory : Sdram
Installed Size : 8 Mb / 8 Mb (Max)
NETWORKING :
Networking : Network Adapter – Pci-X / 133 Mhz – Integrated.
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet.
Features : Wake On Lan (Wol), Acpi Support.
Compliant Standards : Ieee 802.3
POWER DESCRIPTION:
Power Device Type : Power Supply.
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 500 Watt
