GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 361011-001

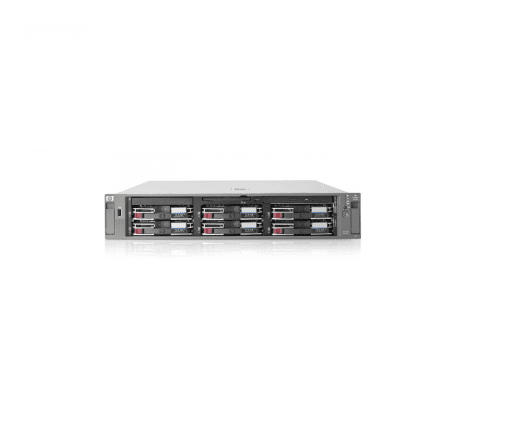

Product Name: Proliant Dl380 Gen4 2u Rack Mount Server (High Performance Model)
PROCESSOR & CHIPSET :
CPU : Intel Xeon 3.6 Ghz
64-Bit Computing : Yes
Installed Cpu Qty : 2
Max CPU Qty : 2
CPU Upgradability : Upgradable
CPU Socket : Socket 604
Chipset Type : Intel E7520
Front Side Bus : 800 Mhz
CACHE MEMORY :
Cache Memory Type: L2 Cache
Installed Size: 2 Mb
Cache Per Processor: 1 Mb
MEMORY:
Installed Ram Size : 2 Gb (2 X 1024mb) / 16 Gb (Max).
Technology: Ddr2 Sdram – Advanced Ecc.
Memory Speed: 400 Mhz.
Memory Specification Compliance: Pc2-3200
Form Factor: Dimm 240-Pin.
Features: Registered.
Upgrade Rule: 2 Modules At A Time.
STORAGE :
Hard Drive : None
Optical Storage Type :
Type : Dvd-Rom – Ide
Read Speed : 24x (Cd) / 8x (Dvd)
Floppy Drive : 3.5 1.44 Mb Floppy
STORAGE CONTROLLER :
Type : 1 X Raid – Integrated – Pci-X
Controller Interface Type : Ultra320 Scsi
Storage Controller Name : Smart Array 6i Controller
Channel Qty : 2
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size : 128 Mb
Storage Controller (2nd) :
Type : 1 X Ide – Integrated
DISPLAY & GRAPHICS CONTROLLER:
Graphics Controller Type: Integrated.
Graphics Processor: Ati Rage Xl.
Video Memory : Sdram.
Installed Size: 8 Mb.
NETWORK & COMMUNICATION :
Networking : Network Adapter – Pci-X – Integrated
Ethernet Controller : Nc7782
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Features : Wake On Lan (Wol)
Compliant Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER :
Device Type: Power Supply – Hot-Plug
Power Redundancy: Yes.
Power Redundancy Scheme: 1+1
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz ).
Power Provided: 575 Watt.
