GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 365172-405

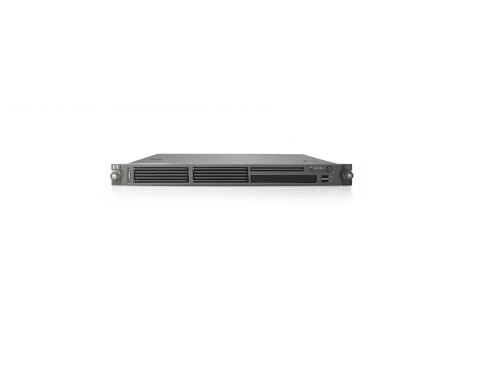

Product Name: Proliant Dl145 1u Rack Mount Cto Chassis
PROCESSOR & CHIPSET:
Installed Processor: None
64-Bit Processor: Yes
Max Processors Supported: 2
Technology: Hypertransport Technology
Cache Memory: 1 Mb L2 Cache
Fsb: 1600 Mhz
MEMORY:
Installed Size: None / 16 Gb (Max)
Technology: Ddr-333 Sdram
Memory Specification Compliance: Pc2700
Memory Protection: Advanced Ecc
Ram Form Factor: Dimm 184-Pin
Ram Slots: 8 Total / 6 Free
STORAGE:
Hard Drive Capacity: None
Hard Drive Interface: Ata
Hard Drive Bays: (2) Non-Hot Pluggable Drive 2 Bays
Optical Storage: None
Diskette Drives: None
STORAGE CONTROLLER:
Storage Controller Type: 1 X Ide – Integrated
Controller Interface Type: Ultra Ata-100
Channel Qty: 2
Controller: Or Optional U320 Scsi Hba
DISPLAY & GRAPHICS:
Graphics Controller Type: Integrated
Graphics Processor: Ati Rage Xl
Video Memory: 8 Mb Sdram
NETWORK & COMMUNICATION:
Networking: Network Adapter – Pci-X / 133 Mhz – Integrated
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: Ipmi 1.5
Features: Wake On Lan (Wol)
Compliant Standards: Ieee 802.3
POWER DESCRIPTION:
Power Device Type: Power Supply – Auto-Switching, Pfc (Power Factor Correcting)
Voltage Required: Ac 120/230 V
Power Provided: 500 Watt
