GENERAL INFORMATION :
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 376343-405

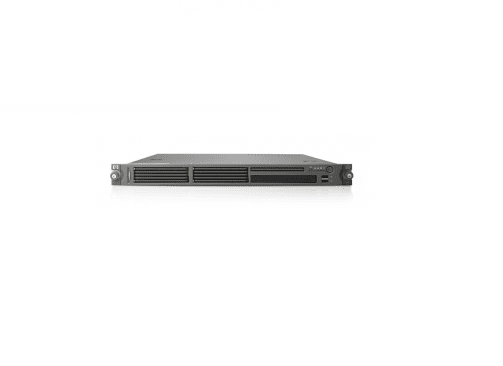

Product Name: Proliant Dl140 Gen2 Server Scsi Cto Chassis
PROCESSOR & CHIPSET:
Processor: Not Included
Max Supported Qty: 2
Upgradability: Upgradable
Chipset Type: Intel E7520
Data Bus Speed: 800 Mhz
STORAGE:
Installed Ram Size: 0 Mb / 16 Gb (Max)
Technology: Ddr2 Sdram – Advanced Ecc
Form Factor: Dimm 240-Pin
STORAGE CONTROLLER:
Storage Controller Type: 1 X Serial Ata – Integrated (SATA)
Controller Interface Type: Serial Ata-150
STORAGE CONTROLLER (2ND):
Storage Controller Type: 1 X Ide – Integrated
Controller Interface Type: Ide/Ata
Storage:
Hard Drive: None.
NETWORKING:
Networking: Network Adapter – Pci-X / 133 Mhz – Integrated
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Features: Wake On Lan (Wol)
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
EXPANSION & CONNECTIVITY:
Expansion Bays Total (Free):
2 ( 2 ) X Internal – 3.5 X 1/3h
1 ( 1 ) X Front Accessible – 5.25 X 1/6h (Slim Line)
Expansion Slots Total (Free):
1 ( 1 ) X Pci-X / 133 Mhz – Full-Length, Full-Height
1 ( 1 ) X Pci-X / 133 Mhz – Half-Length, Low-Profile
2 ( 2 ) X Processor
8 ( 8 ) X Memory – Dimm 240-Pin
INTERFACES & PORTS:
2 X Network – Ethernet 10base-T/100base-Tx/1000base-T – Rj-45
1 X Management – Ethernet 10base-T/100base-Tx – Rj-45
4 X Usb – 4 Pin Usb Type A
1 X Serial – Rs-232 – 9 Pin D-Sub (Db-9)
1 X Mouse – Generic – 6 Pin Mini-Din (Ps/2 Style)
1 X Keyboard – Generic – 6 Pin Mini-Din (Ps/2 Style)
1 X Display / Video – Vga – 15 Pin Hd D-Sub (Hd-15)
