GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 382188-405

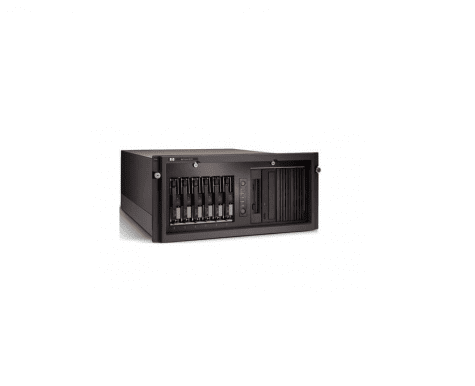

Product Name: Proliant Ml350 G4p Server -Cto Model
5U Rack Mount Server
PROCESSOR & CHIPSET:
Installed Processor: No Cpu
Max Supported Qty: 2
Cache: 2 Mb Level 2 Cache
Chipset: Intel E7520 Chipset
Fsb: 800 Mhz
Chipset Type: Intel E7520
Data Bus Speed: 800 Mhz
MEMORY:
Installed Size: 0 Mb / 12 Gb (Max)
Technology: Ddr2 Sdram
Memory Protection: Advanced Ecc
Memory Specification Compliance: Pc2-3200
Form Factor: Dimm 240-Pin
STORAGE CONTROLLER(1ST):
Integrated Dual Channel Ultra320 Scsi Adapter (All Models)
Storage Controller Type: 1 X Scsi – Integrated – Pci 64
Controller Interface Type: Ultra320 Scsi
Channel Qty: 2
STORAGE CONTROLLER(2ND):
Hp Integrated 2 Port Sata Controller (Only For Sas/Sata Models)
Storage Controller Type: 1 X Ide – Integrated
Raid Controller: Smart Array 641 Controller (Only For Array Models)
STORAGE:
Hard Drive: None.
Hard Drive Interface: Support For Up To Six Wide Ultra320 Hot Plug Hard Drives
Hard Drive Bays: 6 Front Accessible Hot Swap Bays And Four Non Hot Plug Scsi Drive 6 Bays
Optical Storage: None – Ide
Floppy Drive: None
DISPLAY & GRAPHICS:
Graphics Controller: Integrated Ati Rage Xl Video Controller With 8-Mb Sdram Video Memory Vga Connector Up To 1200 X 1600 Resolution Supported
NETWORKING:
Networking: Network Adapter – Pci – Integrated
Ethernet Controller(S): Hp Nc7761
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out Standard
Features: Wake On Lan (Wol)
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
