General Information :
Manufacturer: Hewlett Packard.
Manufacturer Part Number: 391791-B21

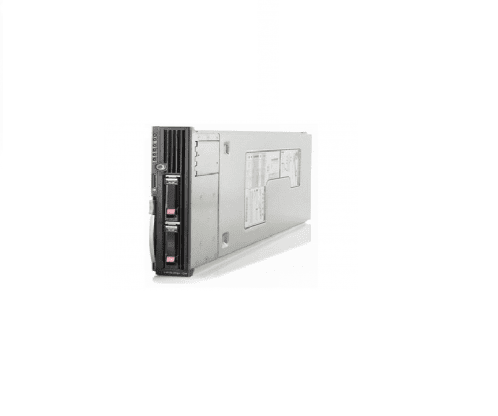

Product Name: Proliant Bl20p G3 Server. (Blade Server)
Processor & Chipset :
Processor Type : Intel Xeon 2.80 Ghz With Em64t/Hyper-Threading Technology.
Installed Qty : 1
Max Supported Qty : 2
Bus Speed : 800 Mhz Fsb
Chipset : Intel E7520
Cache Memory :
Cache Memory Type : L2 Cache.
Installed Size : 1 Mb
Cache Per Processor : 1 Mb
Ram :
Installed Size : 1 Gb
Max Supported Qty : 8 Gb
Memory Type : Ddr2-400/Pc2-3200 Ddr2 Sdram.
Error Checking : Ecc
Signal Processing : Registered
Memory Slots : 240-Pin Dimm (4 DDR2 Slots)
Storage :
Hard Drive : None.
Maximum Internal Storage Support : 600 Gb Hot-Pluggable Scsi – 2 X 300 Gb Hard Drives
Storage Controller :
Storage Controller Type : 1 X Raid – Integrated.
Controller Interface Type : Ultra320 Scsi.
Storage Controller Name : Smart Array 6i Controller.
Channel Qty : 2
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size : 64 Mb
Display & Graphics Controller :(/B)
Graphics Controller Type : Integrated.
Graphics Processor : Ati Rage Xl.
Video Memory : 8 Mb Sdram
Networking :
Networking : Network Adapter – Pci-X – Integrated
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Features : Wake On Lan (Wol)
Expansion / Connectivity :
Expansion Bays Total (Free) :
2 ( 2 ) X Hot-Swap – 3.5 X 1/3h (2 Bays)
Expansion Slots Total (Free):
4 ( 2 ) X Memory – Dimm 240-Pin
2 ( 1 ) X Processor – Socket 604
Interfaces/Ports :
2 X 4-Pin Type A – Usb
1 X Display
1 X Rj-45 – Ilo Remote Management
1 X Debug/Management
4 X Rj-45 – Network
Dimensions & Weight :
Height : 10.29 In.
Width : 28 In.
