GENERAL INFORMATION :
Manufacturer: Hewlett-Packard.
Manufacturer Part Number: 394919-001

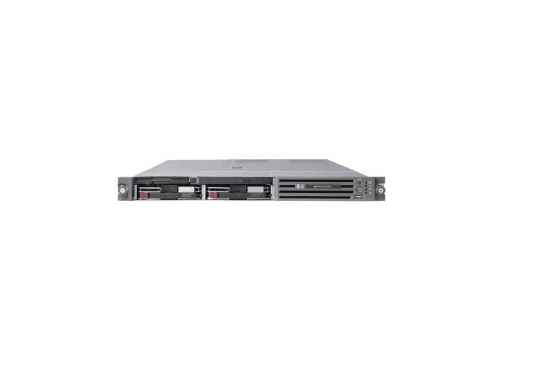

Product Name: Proliant Dl360 G4p – 1u Rack Mount Server (Sas Model)
PROCESSOR & CHIPSET :
Processor Type: Intel Xeon 3.8 Ghz
64-Bit Computing: Yes
Installed Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable
Chipset Type: Intel E7520
Data Bus Speed: 800 Mhz
CACHE MEMORY :
Cache Memory Type: L2 Cache
Installed Size: 2 Mb
Cache Per Processor: 2 Mb
MEMORY :
Installed Size : 2 Gb / 12 Gb (Max)
Technology : Ddr2 Sdram – Advanced Ecc
Memory Speed : 400 Mhz
Memory Specification Compliance : Pc2-3200
Form Factor : Dimm 240-Pin
Features : Dual Channel Memory Architecture, Online Spare Memory
Configuration Features : 2 X 1 Gb
STORAGE :
Hard Drive: None
Optical Storage Type: Cd-Rom-24x
STORAGE CONTROLLERS :
Type : 1 X Raid – Plug-In Card – Pci-X
Controller Interface Type : Sas
Storage Controller Name : Smart Array P600
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 0+1
Buffer Size : 256 Mb
STORAGE CONTROLLER (2ND) :
Type : 1 X Serial Ata – Integrated
Controller Interface Type : Sata 1.5gb/S
Channel Qty : 2
GRAPHICS CONTROLLER :
Type: Integrated
Graphics Processor: Ati Rage Xl
Video Memory: Sdram
Installed Size: 8 Mb
NETWORKING :
Type : Integrated
Interface (Bus) Type : Pci-X
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Hp Nc7782
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
POWER DESCRIPTION:
Power Device Type: Power Supply-Hot-Plug
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 535w Watt
