GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 397628-001

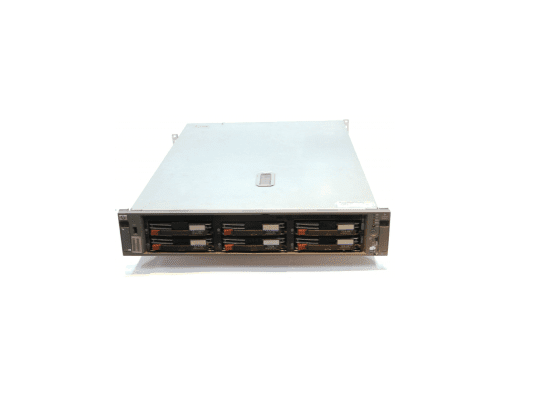

Product Name: Proliant Dl380 G4 – 2u Rack Mount Server
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon 3.8 Ghz
Installed Qty: 1
Max Supported Qty: 2
Processor Technology: Em64t,Hyper-Threading Technology.
Upgradability: Upgradable
Chipset Type: Intel E7520
Data Bus Speed: 800 Mhz
CACHE MEMORY:
Cache Memory Type: L2 Cache
Installed Size: 2 Mb
Cache Per Processor: 2 Mb
MEMORY:
Installed Ram Size: 1 Gb
Max Supported Size: 12gb
Memory Technology: Ddr2 Sdram
Memory Standard: Ddr2-400/Pc2-3200
Signal Processing: Registered.
Error Checking: Advanced Ecc.
Memory Slots: 6 DDR2 Slots
STORAGE:
Hard Drive: None.
Maximum Internal Storage Support: 576 Gb Hot Swap Sas.
Optical Drive: Cd-Reader – Cd-Rom (Atapi)
Removable Storage Drives: None.
STORAGE CONTROLLERS:
Storage Controller Type: 1 X Raid – Integrated – Pci-X / 133 Mhz
Controller Interface Type: Ultra320 Scsi
Storage Controller Name: Smart Array 6i Controller
Channel Qty: 2
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size: 64 Mb
Storage Controllers(2nd):
Storage Controller Type: 1 X Ide – Integrated
Controller Interface Type: Ide/Ata
DISPLAY & GRAPHICS:
Graphics Controller Type: Integrated
Graphics Processor: Ati Rage Xl
Video Memory: 8 Mb Sdram
NETWORK & COMMUNICATION:
Networking: Network Adapter – Pci-X – Integrated.
Ethernet Ports: 2 X Gigabit Ethernet.
Ethernet Controller: Hp Nc7782
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet.
Remote Management Protocol: Snmp.
Features: Wake On Lan (Wol), Acpi Support.
